点击放大查看
09670375601
| 制造商 | |

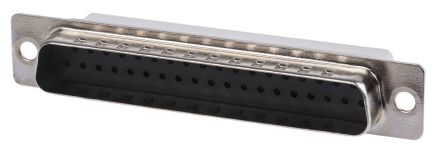

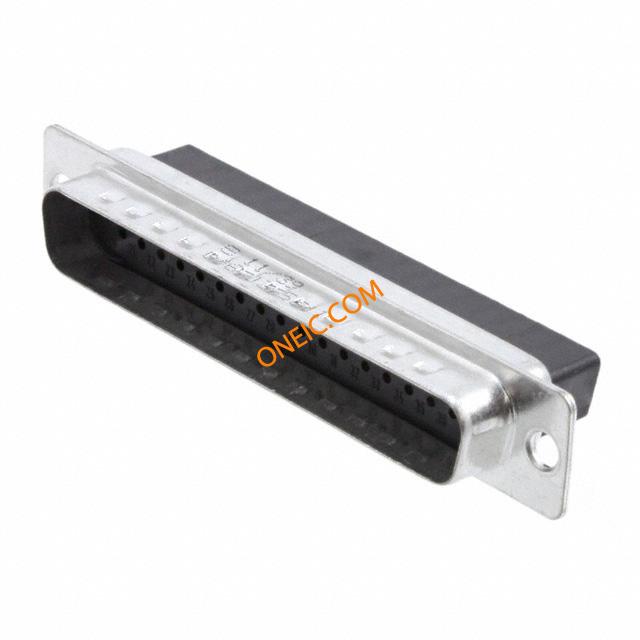

| 描述 | D-Sub Standard Connectors 37P MALE CRIMP NO CONTACTS DSUB MA CRIMP 37 POLE CrimpDConnector(MaleTinnedMetalShellwDimples)37position D-Sub; PIN:37; male; w/o terminals Harting 37路 直 压接式 D-sub 连接器, 插头 |
| 分类 |
商业参数
| 零件号别名 | 037 09 09-67-037-5601 5601 67 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308,DIN41652,CECC75301-802 |
电气参数
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 深度 | 17.8mm | 宽度 | 12.5mm |
| 长度 | 69.3mm | 重量 | 0.02 kg |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | D-Sub | 壳体材料 | Metal |
| 包装数量 | 2 | 主要材料 | D-Subminiature |
| 尺寸/外形 | 69.3 x 12.5 x 17.8mm | 端接样式 | Crimp |
| 触点数 | 37 | 介电材料 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| 位数 | 37 | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| SPG | 2 | 备注 | Contacts Not Provided |
| 类型 | CablePlug | 连接器性别 | Male |
| 系列 | D-Sub Standard | 产品特性 | Grounding Indents |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
