点击放大查看

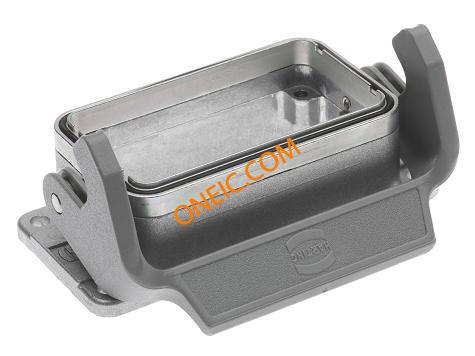

09628100305
| 制造商 | |
| 描述 | Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 10B 1 LVR LCKING HAN EMC/B 10 BASE PANEL CONN BASE BOTTOM ENTRY SZ10B |
| 分类 |
商业参数
| 零件号别名 | 0305 09 09-62-810-0305 62 810 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | 10B | 包装方式 | Bulk |
| 连接器类型 | Base - Panel Mount | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 3.661" L x 1.709" W x 1.075" H (93.00mm x 43.40mm x 27.30mm) | ||
产品信息
| 样式 | Bottom Entry | 系列 | * |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Base Bottom |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
