点击放大查看

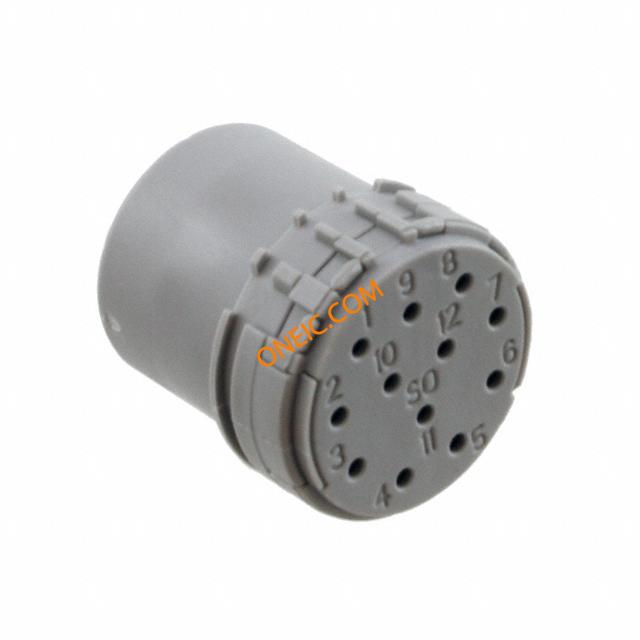

09152122702
| 制造商 | |
| 描述 | HAN R23 POS. 12 F INSERT CRIMP Heavy Duty Power Connectors FEMALE INSERT METAL CRIMP TERM CONN INSERT 12POS CRIMP SKT Han R23 Female Insert: Han R23 Position 12 F Insert Crimp |
| 分类 |
商业参数
| 零件号别名 | 09 09-15-212-2702 15 212 2702 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 50 V | 最大额定电流 | 7A |
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 端接方式 | Crimp | 连接器类型 | Insert, Female Sockets |
| 接触镀层 | Gold | 插入力 | Female |
| 壳体材料 | Metal | 尺寸/外形 | R23 |
| 端接样式 | Crimp | 触点数 | 12 |
| 位数 | 12 | ||
产品信息
| 类型 | CONNECTORS | 系列 | Han |
| 产品特性 | Insert Only, Requires Shell | 产品子类型 | Accessories |
环境参数
| 工作温度 | -40°C ~ 115°C | ||
相关型号

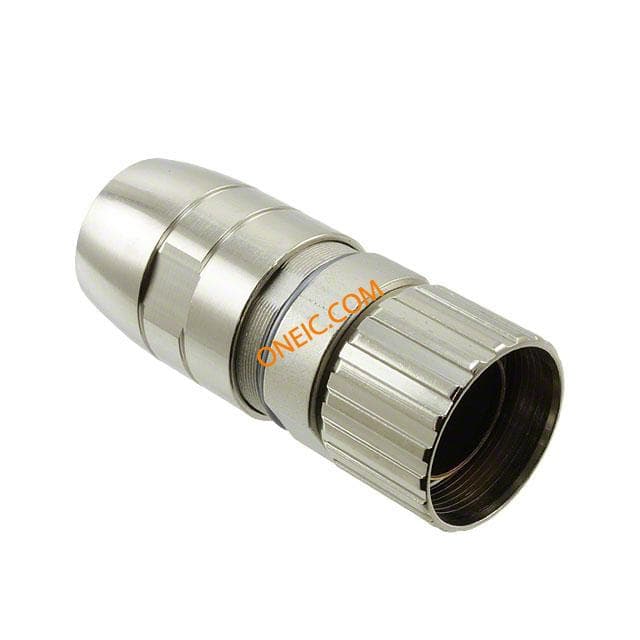

09152000451
HARTING
Heavy Duty Power Connectors EMC HOOD R 23 Standard Circular Connectors EMC HOOD R 23 CONN HSG INSERT SHELL CABLE Han R23 Hoods: Han R23 EMC Hood Top Entry Shell R23 for cable EMC, 09152000451, HARTING
09152000403
Harting Technology Group
Connector Accessories 17 POS Hood Copper Zinc Alloy Nickel Plating Heavy Duty Power Connectors METAL HOOD STD W/ TOP ENTRY CONN HSG INSERT SHELL CABLE HanR23HoodTopEntryPG11 Han R23 Hoods: Han R23 Hood Top Entry PG 11 Shell R23 for cable, 09152000403, HARTING Harting R23 系列 0915 电缆安装 直向 外壳 插座 , 螺丝锁接合

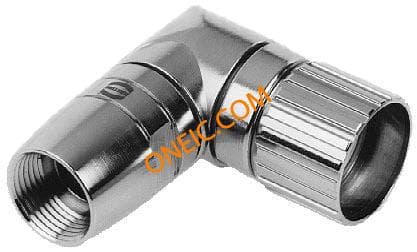

09152000603
