点击放大查看

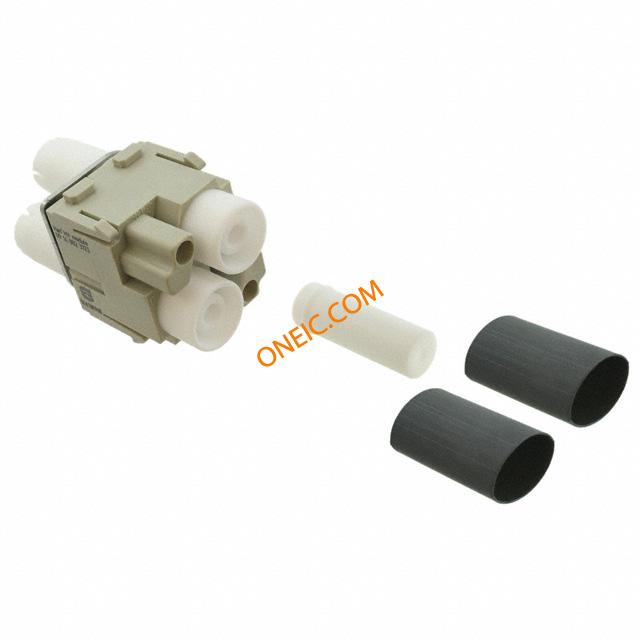

09140023123
| 制造商 | |
| 描述 | HAN HV MODULE, 40A CRIMP FEMALE Heavy Duty Power Connectors Han HV module 40A crimp female Han-Modular Modules: Han HV module, 40A crimp female |
| 分类 |
商业参数
| 零件号别名 | 002 09 09-14-002-3123 14 3123 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 5 kV | 最大额定电流 | 40A |
机械参数
| 颜色 | Gray | 包装方式 | Bulk |
| 触头类型 | Han® C | 连接器类型 | Module without Contacts |
| 接触镀层 | Silver | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polytetrafluoroethylene (PTFE) |
| 端接样式 | Crimp | 触点数 | 2 |
| 位数 | 2 | 线规或范围 - AWG | 16-8 |
产品信息
| 类型 | CONNECTORS | 连接器性别 | Female |
| 产品子类型 | Modules | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
09320006208
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 6mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 10 AWG Han HsC Female Crimp Contact 10 AWG Connector;Female Insert;Silver Plated 10 AWG Power Contact;Han C Modular Conn Contact F 1Power POS Crimp ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated10AWGPowerContact;HanCModular Contact; female; 6mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact 10 AWG Harting Han Contacts 系列 1 路 母座 触点
09320006205
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 2.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT Han HsC Female Crimp Contact 14 AWG Connector;Female Insert;Silver Plated 14 AWG Power Contact;Han C Modular Conn Contact F 1 POS ST 1 Terminal 1 Port Connector;FemaleInsert;SilverPlated14AWGPowerContact;HanCModular Contact; female; 2.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contact, 2.5mm2 Harting Han Contacts 系列 1 路 母座 触点
09320006207
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 4mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 12 AWG 09320006207 Connector;FemaleInsert;SilverPlated12AWGPowerContact;HanCModular Contact; female; 4mm2; Han Com; silver plated; crimped; 40A; 3mΩ Han C Contacts Female: Han HsC Female Crimp Contacts 12 AWG
09320006204
Harting Technology Group
Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 1.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 16 AWG Han HsC Female Crimp Contact 16 AWG Conn Contact F 1 POS ST 1 Terminal 1 Port HANHSCFEMALECRIMPCONTACT16AWG Contact; female; 1.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Harting Han Contacts 系列 母座 压接触点 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器

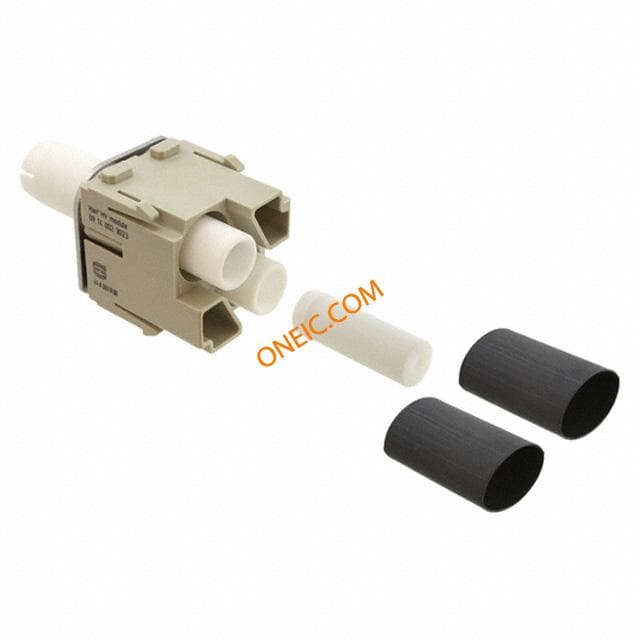

09140023023
