点击放大查看

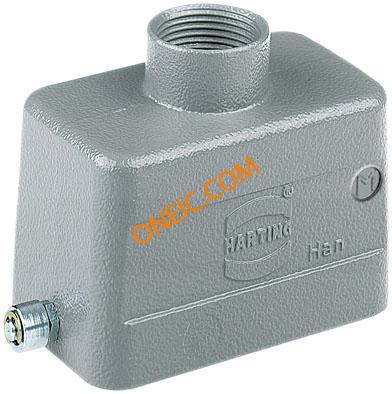

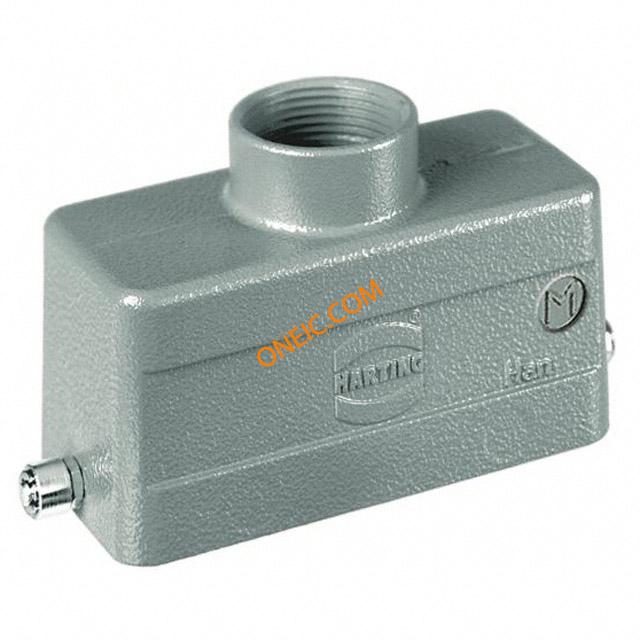

19300101440

制造商	HARTING Technology Group
描述	Connector Accessories Hood Heavy Duty Power Connectors METAL HOOD HAN 10B 1 LEVER HAN 10 B HOOD TOP M20 Han10BHoodTopEntryM20 Enclosure: for Han connectors; Han; size 10B; for cable; straight Han B Hoods: Han 10 B Hood Top Entry M20 Harting Han B 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3109	零件号别名	010 019 019-30-010-1440 1440 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	10B	深度	43
高度	58.5	重量	0.13 kg
包装方式	Bulk	方向	straight
螺纹尺寸	M20	外壳颜色	Gray
衬套螺纹	M20	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	for cable
封装形式	size 10B	锁定特性	for latch
壳体材料	Aluminum, Die Cast	总长度	90.6
尺寸/外形	2.858" L x 1.693" W x 2.303" H (72.60mm x 43.00mm x 58.50mm)	端接样式	Cable
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

类型	Hood	样式	Top Entry
系列	Han Snap	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom	适配器系列	Han
单元数量	1	基础产品编号	1930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
