09152172603
| 制造商 | |

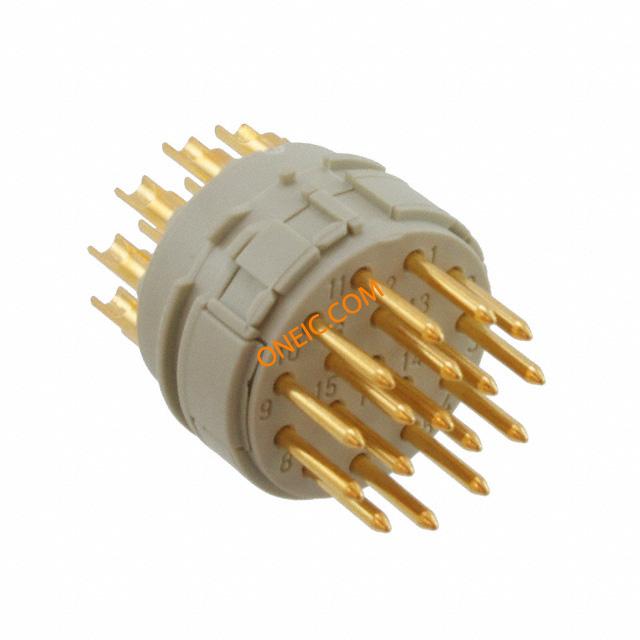

| 描述 | Conn Circular M 17 POS Solder ST Thru-Hole 17 Terminal 1 Port Heavy Duty Power Connectors MALE INSERT METAL SOLDER TERM CONN INSERT 17POS SLD CUP PIN HanR23Pos.17MInsertSolder Han R23 Male Insert: Han R23 Position 17 M Insert Solder Insert male solder 17, 09152172603, HARTING Harting R23 系列 0915 17路 通孔 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 零件号别名 | 09 09-15-217-2603 15 217 2603 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 150 | 极数 | 17 |
| 最大额定电流 | 7A | 额定电流 - 设备输入口 | 7 |
机械参数
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 端接方式 | Solder |
| 触头类型 | 17Signal | 安装类型 | Through Hole |
| 连接器类型 | Insert, Male Pins | 接触镀层 | Gold |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate (PC) | 端接排数 | 焊接 |
| 端接样式 | Solder | 第一触头极性 | M |
| 触点数 | 17 | 位数 | 17 |
产品信息
| 类型 | Circular | 系列 | Han R23 |
| 产品特性 | Insert Only, Requires Shell | 产品子类型 | Inserts |
| 基础产品编号 | 0915 | ||
环境参数
| 工作温度 | -40°C ~ 115°C | ||
