点击放大查看

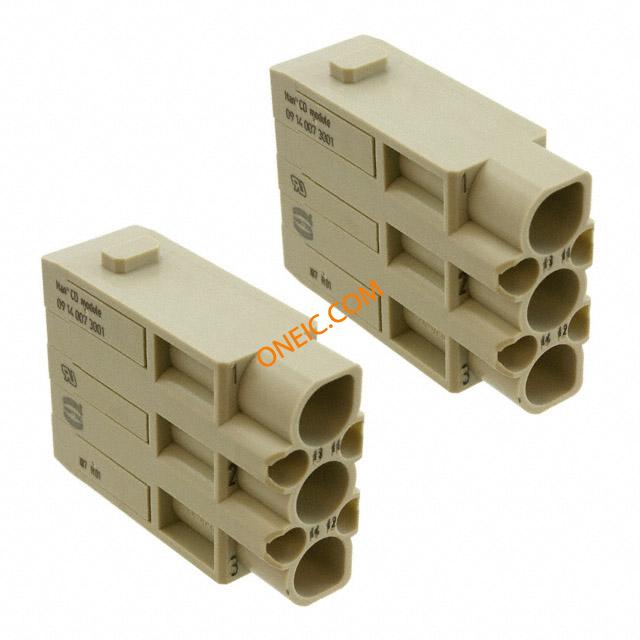

09140073001

制造商	HARTING Technology Group
描述	Han Cd - Modul Sc / Han Cd - Module Sc Stifleinsatz / Male Inser Heavy Duty Power Connectors MOD FOR MALE CON HAN CD MODULE HAN CD MODULE CRIMP MALE HAN3/4MOD-M-C Connector: HAN; module; male; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - M-c Harting HAN Modular 系列 1行 3针插头电源连接器外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	007 09 09-14-007-3001 14 3001	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	2

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

测试电压	8kV	额定电压	600V
最大额定电流	40 A	连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Gray	重量	0.01 kg
包装方式	Bulk	方向	直
触头类型	Han® C, Han® D	连接器类型	Module without Contacts
排数	1	插入力	Male
壳体材料	Polycarbonate (PC)	包装数量	1
端接排数	压接	连接器 - 电缆	module
端接样式	Crimp	触点数	7
位数	3+4	绝缘材料 - 材质	polycarbonate

产品信息

SPG	1	类型	CONNECTORS
连接器性别	Male	系列	Han Modular
产品子类型	Accessories	适配器系列	Han Modular CD
单元数量	1	基础产品编号	0914

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C

相关型号

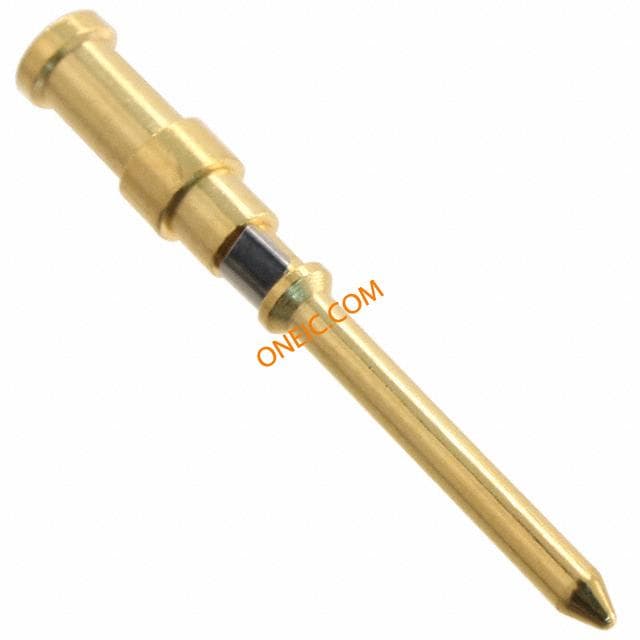

09150006123
