09061482935

制造商	HARTING Technology Group
描述	F MALE DIN 41612 Connectors DIN PWR F048MS-3 0C1-1-V48 DIN-POWER F048MS-3,0C1-1-V48 Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 06 系列 48 路 2.54mm 节距, F型, 3 行, 直角 DIN 41612 插头, 焊接端接
分类	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	06 09 09-06-148-2935 148 2935	标准包装数量	1
工厂包装数量	20

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压	125 V ac	接触电阻	15mΩ
最大额定电流	6A

机械参数

间距	0.200" (5.08mm)	包装方式	Bulk
方向	直角	端接方式	Solder
安装类型	Through Hole, Right Angle	连接器类型	Header, Male Pins
接触镀层	Gold	排数	3
触头材料	Copper Alloy	壳体材料	Thermoplastic
端接排数	焊接	触点数	48
位数	48 (Power)	绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	F	样式	F
连接器性别	Male	系列	09 06
加载位置数	All

环境参数

级别、等级

工作温度

+125°C

相关型号

09062486833

Harting Technology Group

Conn Backplane F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors FLOW048FS-3,2C1-2 DIN POWER DIN-POWER FLOW048FS-3,2C1-2 Connector DIN-Power Flow solder 48-way f ConnectorDIN-PowerFlowsolder48-wayf Harting 09 06 系列 48 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接

¥30.6927

详情

09062486836

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors DIN-POWER F048FS-3,0C1-2 DIN-POWER F048FS-3,0C1-2 Connector DIN-Power solder 48-way f ConnectorDIN-Powersolder48-wayf Harting 09 06 系列 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插座, 焊接端接

¥106.8200

详情

09062486826

Harting Technology Group

Conn Backplane F 48 POS 5.08mm Solder RA SMD/Thru-Hole DIN 41612 Connectors 48P TYPE F FEMALE INVERSE 5.08MM DIN-POWER F048FS-3,0C1-2

¥100.4788

详情

09062486848

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRF048FS-3,7C1-2 DIN-POWER F048FS-3,7C1-2

¥28.4240

详情

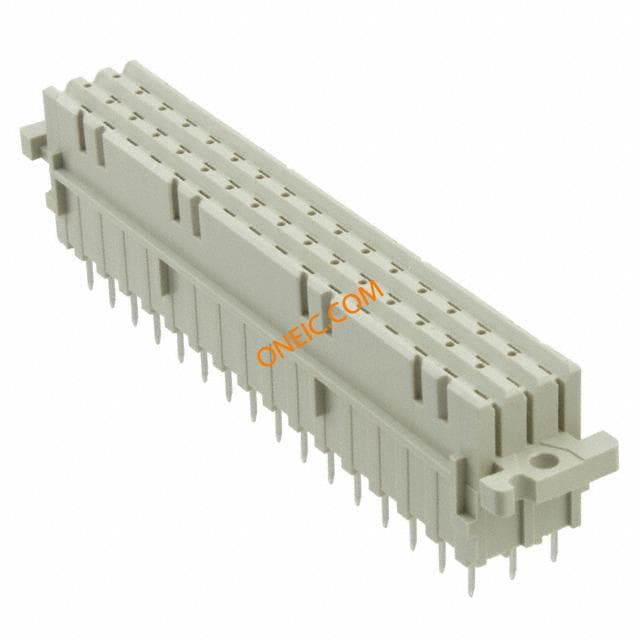

09062486835

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER F048FS-4,5C1-2 Plug; DIN 41612,type F; female; PIN:48; d+b+z; THT; straight; 6A Harting 48 路 5.08mm 节距 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接

¥45.8320

详情

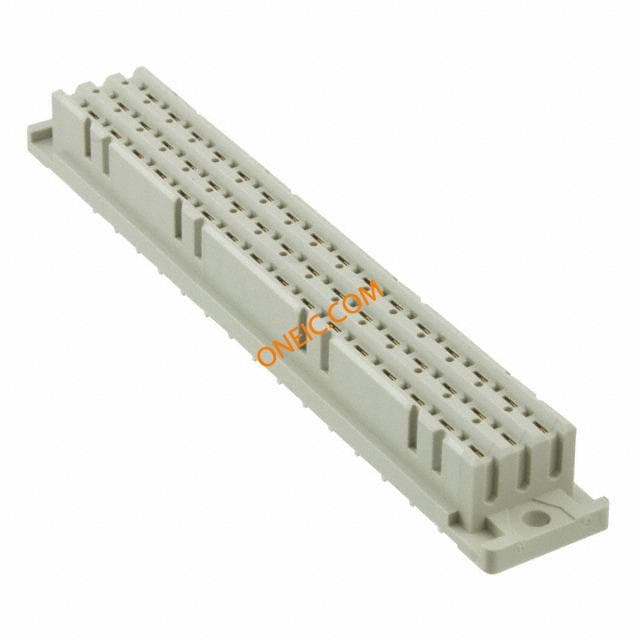

09062486834

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER FLOW048FS-4,5C1-2 41612FBODY LOWPROF SK Harting 48 路 5.08mm 节距, 3 行直向 DIN 41612 插座, 焊接端接

¥40.1492

详情

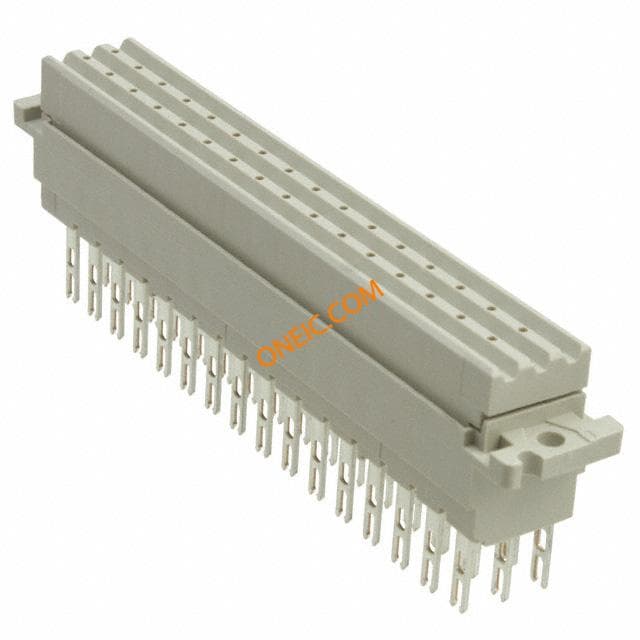

09062486823

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Panel Mount DIN 41612 Connectors 48P TYPE F FEMALE SOLDER LUG DIN-POWER F048FL-9,0C1-2 48 way DIN41612 solder lug socket Plug; DIN 41612,type F; female; PIN:48; d+b+z; for cable; straight Harting 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接

¥34.1040

详情

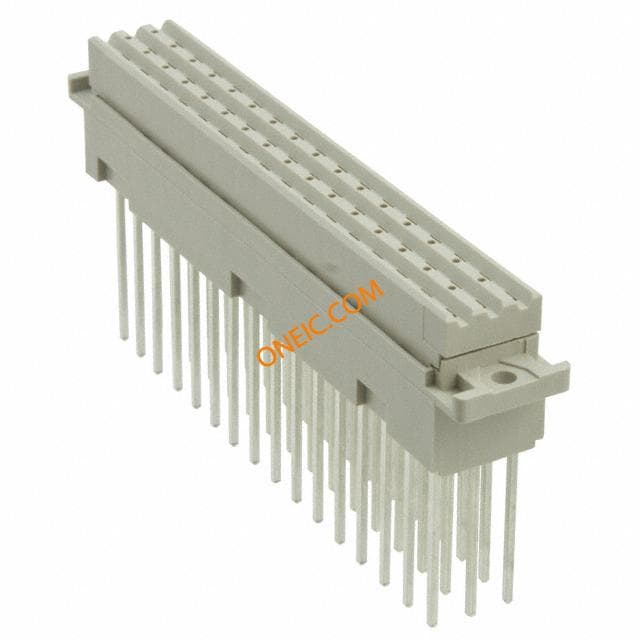

09062486821
