09061326931
| 制造商 | |
| 描述 | Conn DIN 41612 M 32 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors 32P 6A MALE R/A SLDR DIN-POWER F032MS-3,0C1-2 Connector DIN-Power solder 32-way m DIN-PowerF032MS-3,0C1-2 Socket; DIN 41612,type F; male; PIN:32; d+z; THT; angled 90°; 6A Harting 09 06 系列 32 路 2.54 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/d, 直角 DIN 41612 插头, 焊接端接 |
| 分类 |
商业参数
| 零件号别名 | 06 09 09-06-132-6931 132 6931 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接触电阻 | 15mΩ | 最大额定电流 | 6A |
机械参数
| 深度 | 22 | 间距 | 0.200" (5.08mm) |
| 高度 | 14.7 | 重量 | 0.02 g |
| 包装方式 | Bulk | 方向 | angled 90° |
| 端接方式 | Solder | 引脚间距 | len. 3mm |
| 尾部长度 | 3 mm | 安装类型 | Right Angle |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 93.9 |
| 包装数量 | 20 | 端接排数 | a/c |
| 连接器 - 电缆 | socket | 端接样式 | Solder Pin |
| 触点数 | 32 | 位数 | 48 (Power) |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 接触镀层厚度 | Flash |
| 触点材料 - 镀层 | gold plated | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装特征 | d+z | ||
产品信息
| SPG | 20 | 类型 | DIN 41612 |
| 样式 | F | 连接器性别 | M |
| 系列 | 09 06 | 等级代码 | C2 |
| CAD图纸 | 3D CAD Model | 单元数量 | 1 |
| 插座类型与数量 | Z/d | 加载位置数 | 32 |
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
| 机械寿命 | 400cycles | 工作温度 | +125°C |
文档与媒体
相关型号
09062326893
HARTING

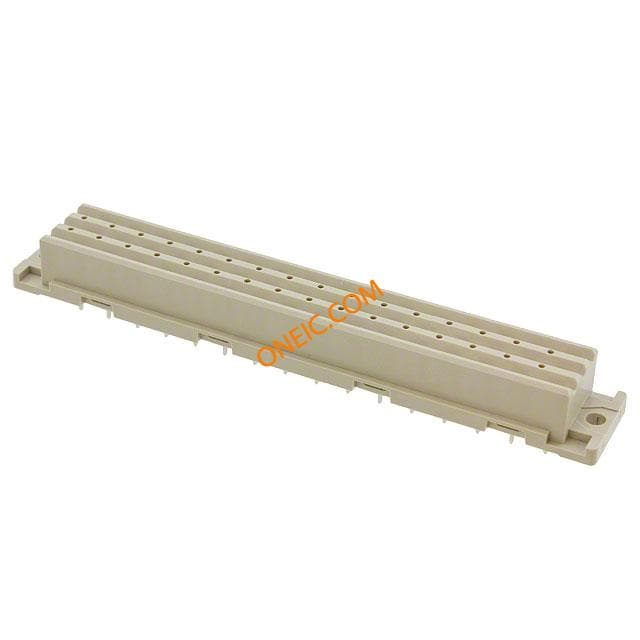

DIN 41612 Connectors DIN-POWER FLOW032FS-3,2C1-2 DIN-POWER FLOW032FS-3,2C1-2 Connector DIN-Power Flow solder 32-way f ConnectorDIN-PowerFlowsolder32-wayf Harting 09 06 系列 32 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/d 直向 DIN 41612 插座, 焊接端接
09062326831
HARTING

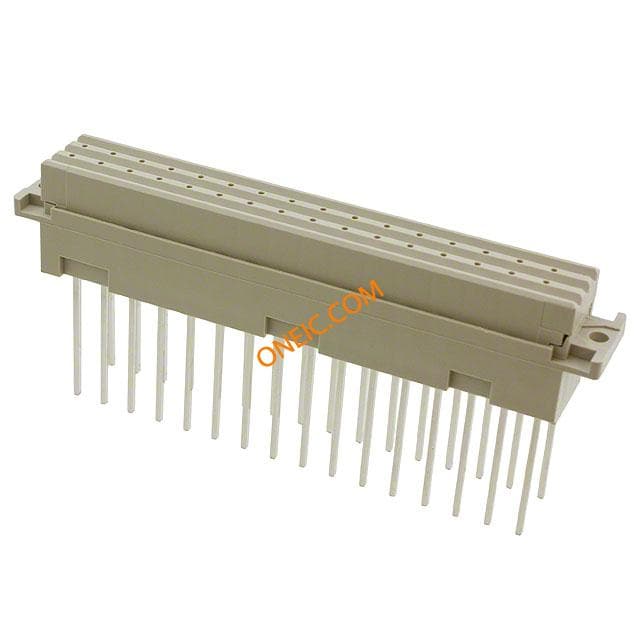

DIN 41612 Connectors DIN-POWER F032FW-22,0C1-2 DIN-POWER F032FW-22,0C1-2 Connector DIN-Power wrap-post 32-way f ConnectorDIN-Powerwrap-post32-wayf Harting 09 06 系列 32 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/d 直向 DIN 41612 插座, 绕线端接
09060009907
Harting Technology Group
Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B LEFT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09062326845
Harting Technology Group

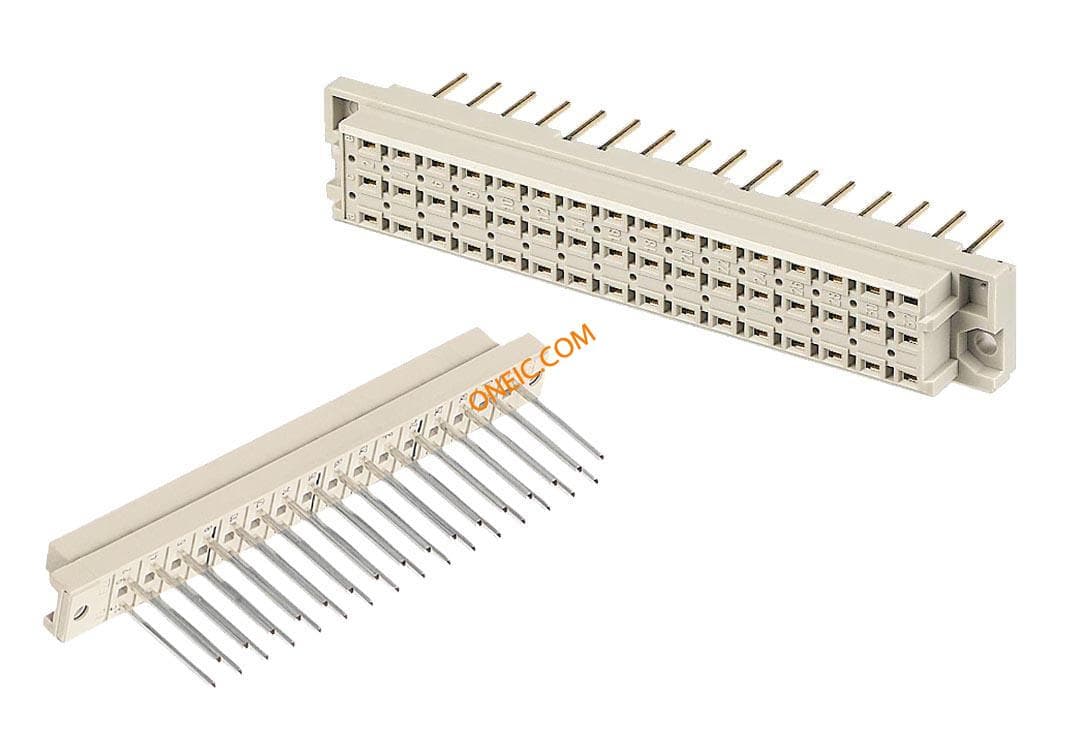

Conn DIN 41612 F 32 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRF032FS-4,5C1-2 DIN-POWER F032FS-4,5C1-2 DIN-PowerF032FS-4,5C1-2 Plug; DIN 41612,type F; female; PIN:32; d+z; THT; straight; 6A
09060009908
Harting Technology Group
Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B RIGHT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009909
Harting
DIN-POWER FIXING BRACKET BL 15MM DIN 41612 Connectors FIXING BRKT LEFT TYPE MH STANDARD Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009910
Harting
DIN-POWER FIXING BRACKET BR 15MM DIN 41612 Connectors FIXING BRKT RIGHT TYPE MH STANDARD Fixing element; right sale Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009966
Harting

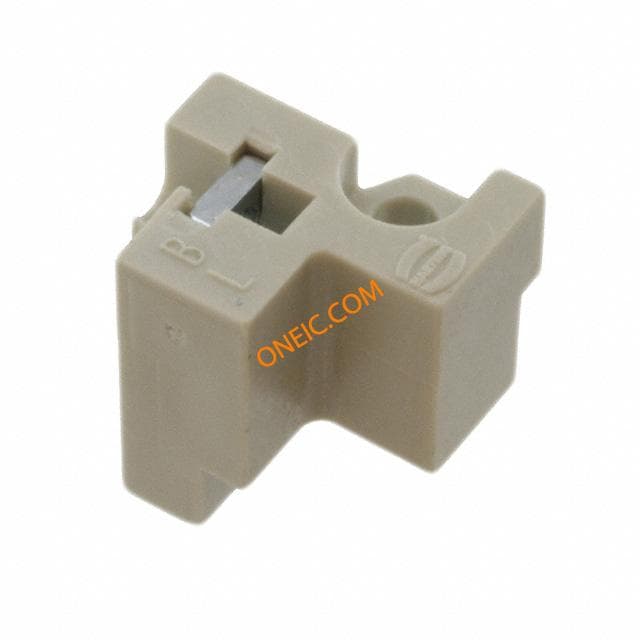

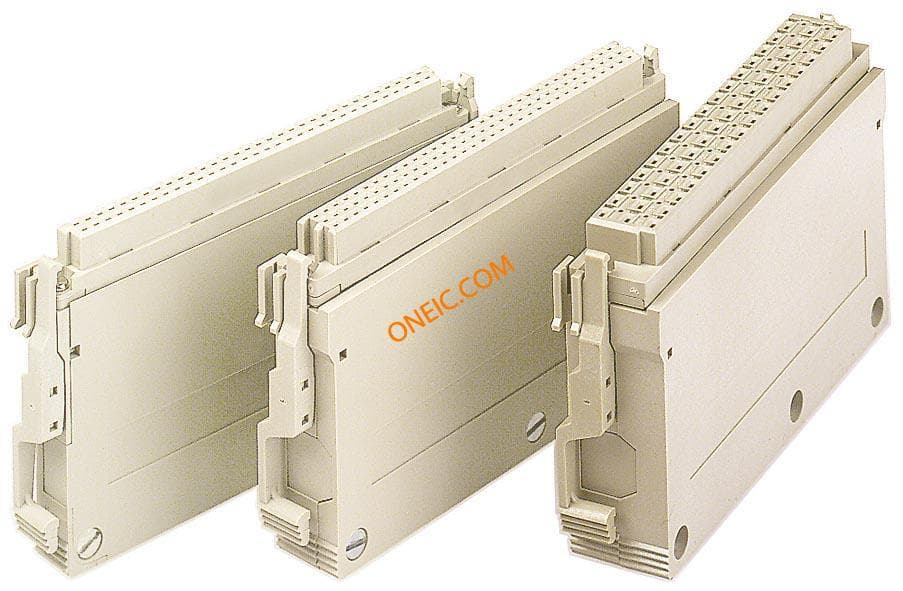

DIN-POWER FIXING BRACKET B LEFT DIN 41612 Connectors DIN PWR FIXING BRKT B LT Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09060009967
Harting
DIN-POWER FIXING BRACKET B RIGHT DIN 41612 Connectors DIN PWR FIXING BRKT B RT Harting 09 06 系列 固定支架, 使用于 DIN 41612 连接器
09062326894
Harting

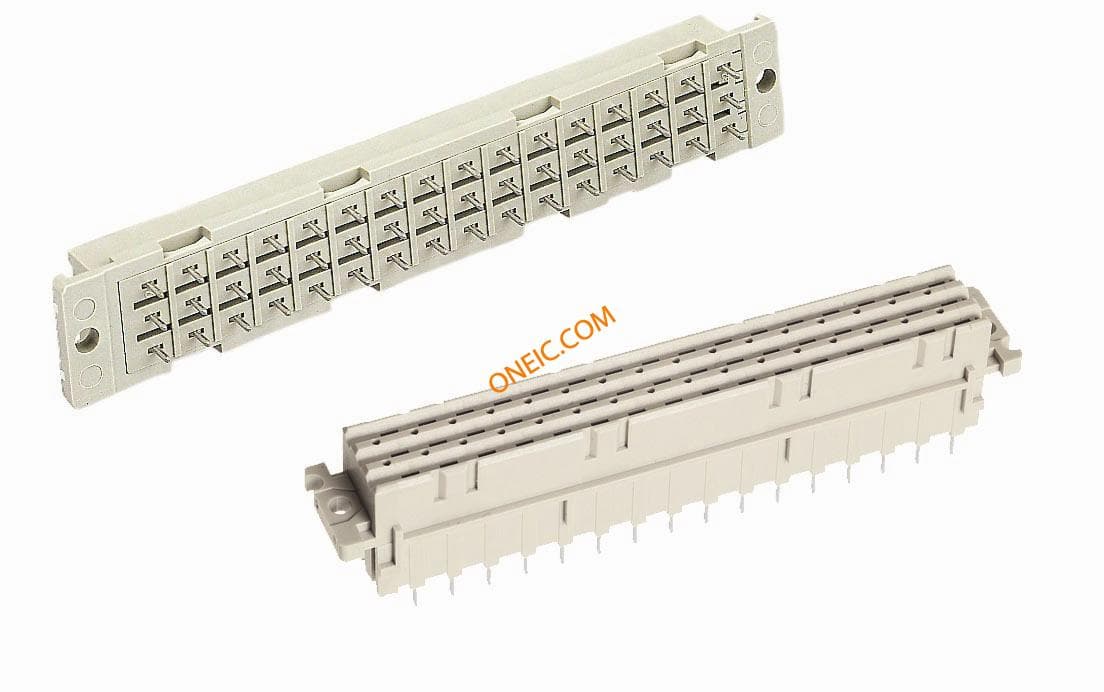

DIN-POWER FLOW032FS-4,5C1-2 DIN 41612 Connectors FLOW032FS-4,5C1-2 DIN POWER Connector DIN-Power Flow solder 32-way f ConnectorDIN-PowerFlowsolder32-wayf Harting 09 06 系列 32 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/d 直向 DIN 41612 插座, 焊接端接
09062326843
Harting
DIN-POWER F032FL-9,0C1-2 DIN 41612 Connectors DINPWRF032FL-9,0C1-2 Plug; DIN 41612,type F; female; PIN:32; d+z; for cable; straight
