1590WAFL
| 制造商 | Hammond Manufacturing Company Limited |
| 描述 | Enclosures, Boxes, & Cases 1.52X4.32X1.06 PLAIN BOX ALUM 3.64X1.52X1.22" UNPTD BOX, DIECAST, IP65, 92X38X27MM Enclosure;FlangedLid;Aluminum,Diecast;Natural;3.642x1.516x1.22In;IP65;1590W Flange housing Metal, matte 92.5 x 38.5 x 27 mm Aluminium IP 65, 1590WAFL, Hammond Hammond 1590 系列 IP65 铝外壳 , 带法兰, 92.6 x 38.5 x 31 |
| 分类 |
商业参数
| 产品 | Electrical Boxes | 产品类别 | Enclosures, Boxes, & Cases |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 76129090 | ||
机械参数
| 颜色 | Unpainted | 深度 | 3.64 in |
| 高度 | 1.220" (30.99mm) | 重量 | 0.213 lb (96.62g) |
| 材料（通用） | Metal, Aluminum | 厚度 | 0.080" (2.03mm) |
| 壳体颜色 | :Unfinished | 面积（长x宽） | 5.52" (35.6cm) |
| 宽度（英寸） | :1.54" | 总深度 | :1.22" |
| 高度（英寸） | :3.66" | 总宽度 | 1.52 in |
| 尺寸/外形 | 3.642" L x 1.516" W (92.51mm x 38.51mm) | 供应商器件封装 | :Instrument |
| 外部壳体材料 | :Aluminium | 外径-未扩张 | 1.06 in |
| 外壳尺寸 - 插入（转换自） | :93mm | ||
产品信息
| 类型 | Water Resistant, Flanged Cover Panel | 设计类型 | Cover Included |
| 产品特性 | Watertight | 制造商全称 | 1590WSeries |
| 配置 | PanelMount | 运输信息 | Shipped from Digi-Key |
| 容器类型 | Box with Mounting Flange | ||
环境参数
| 额定等级 | IP65 | 密封等级 | IP 65 |
| NEMA 机架尺寸 | :4X | 防护等级 | IP65 |
文档与媒体
相关型号

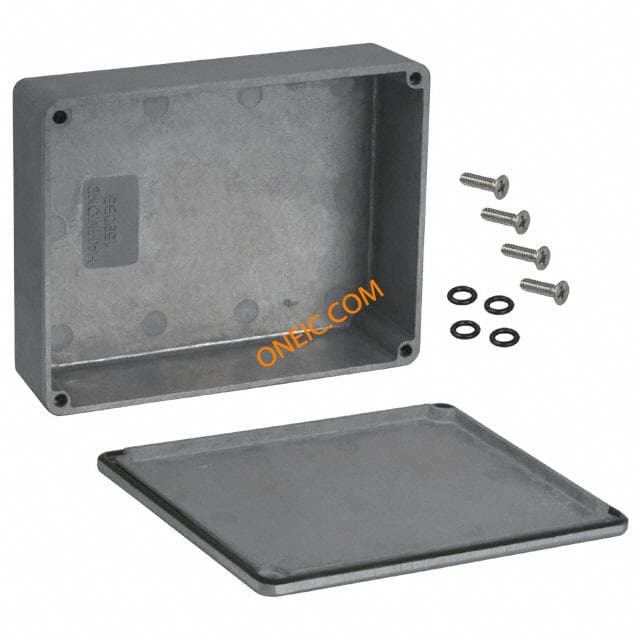

1590WBB
Hammond Manufacturing
Enclosures, Boxes, & Cases 4.67X3.68X1.18 BOX ALUM 4.71X3.70X1.34" UNPTD IP65 diecast enclosure, 119.5x94x34mm BOX, DIECAST, IP65 Enclosure;Box-Lid;Aluminum,DieCast;Natural;4.68x3.68x1.34In;IP65;1590WSeries Hammond 1590 系列 IP65 屏蔽 铝外壳 , 119.5 x 94 x 34
1590MS100
Hammond Manufacturing
Screws & Fasteners 100pc 6-32X1/2 SCREW MACH SCREW FLAT PHIL 6-32 100/PK Replacement lid screw 6-32x0.5in.Clear ENCLOSURE, SCREWS, PK100 hardware-screws Hammond 钢 螺钉, 1/2in, 适用于1590 系列，L-R 除外

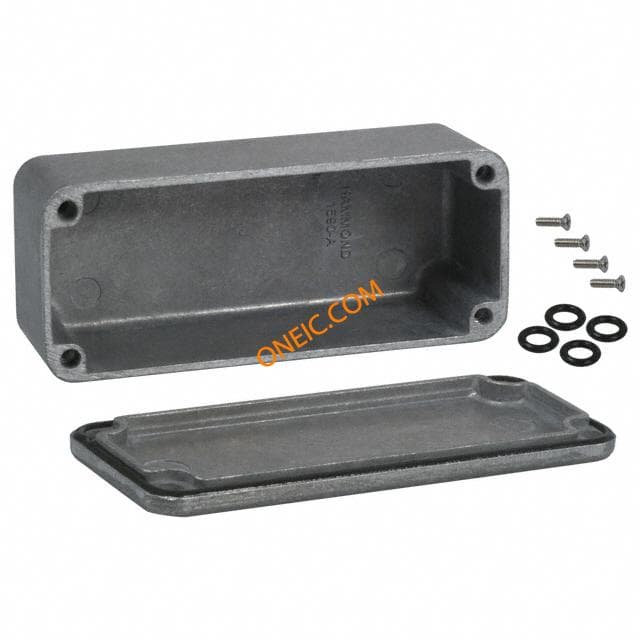

1590WA
Hammond Manufacturing
Enclosures, Boxes, & Cases 3.64X1.52 BOX ALUM 3.64X1.52X1.22" UNPTD IP65 diecast enclosure, 92.5x38.5x31mm Enclosure;Box-Lid;Aluminum,DieCast;Natural;3.62x1.5x1.23In;IP65;1590WSeries Enclosure: multipurpose; 1590; X:39mm; Y:93mm; Z:27mm; aluminium Hammond 1590 系列 IP65 屏蔽 铝外壳 , 92.5 x 38.5 x 31

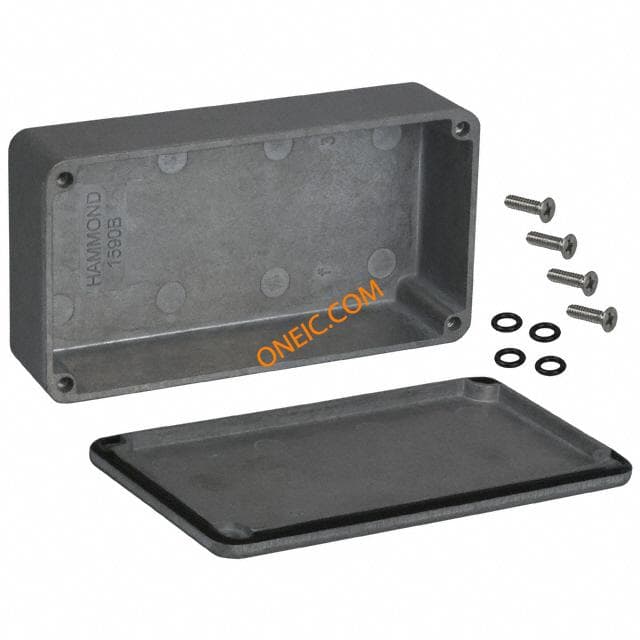

1590WB
