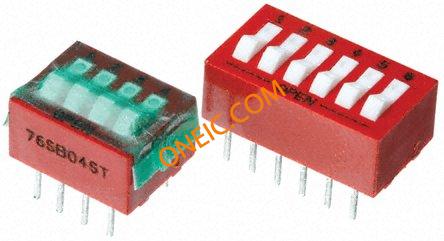

76SB08ST
| 制造商 | |
| 描述 | Switch DIP ON OFF SPST 8 Raised Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube Switch DIP ON OFF SPST 8 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube SW DIP EXT RCKR SEALED 8POS 30V DIP Switch SPST PCB Rocker, 0.15 A @ 30 V dc, 8-Way, -40 to +85°C ROCKER SWITCH, DIL, 8WAY Switch,Thru-HoleDip,RaisedRocker,8Positions,TapeSeal |
| 分类 |
商业参数
| 其他名称 | GH7176 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85365019 |
| 抗辐射加固 | No | ||
电气参数
| 电路 | SPST | 电容 | :5pF |
| 额定电压 | 30 V | 极数 | 1 |
| 开关功能 | ON OFF | 接触电阻 | :30mohm |
| 介电强度 | :500V | 最大额定电流 | 0.15@30VDC A |
| 最大触点电流 | :5A | 绝缘电阻 | :5000Mohm |
| 开关功能/额定值 | ON OFF | 触点额定电流 | 0.15 A @ 30 V dc |
| 触点额定值 @ 电压 | 0.15A @ 30VDC | 直流反向电压（Vr）（最大） | 30V |

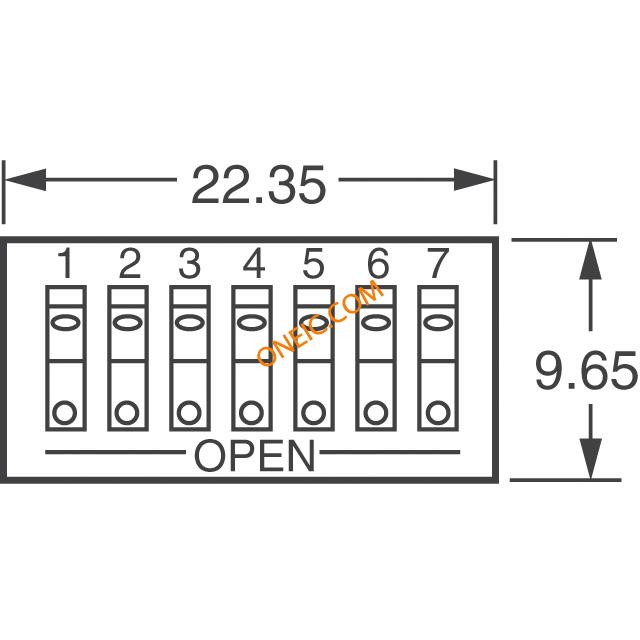

机械参数
| 密封 | Tape(Polyester Film)/Base | 深度 | 9.65 mm |
| 间距 | 2.5 mm | 宽度 | :9.5mm |
| 高度 | 8 mm | 长度 | :7.5mm |
| 重量 | 0.045 | 材料（通用） | :Moulded thermoplastic polyester |
| 包装方式 | Tube | 方向 | Top Actuated |
| 端接方式 | PCBPins | 触点形式 | SPST |
| 引脚间距 | :2.54mm | 柱间距 | :7.62mm |
| 致动器类型 | Rocker | 安装类型 | Through Hole |
| 端子类型 | PC Pins | 执行器水平位置 | Raised |
| 接触镀层 | Gold/Nickel Barrier | 安装样式 | Through Hole |
| 封装形式 | DIP | 材料表面处理 | :- |
| 触头材料 | Copper Alloy | 总长度 | 22.4 mm |
| 插针孔直径 | :DIL | 端接样式 | PC Pins |
| 引线长度 | :3.96mm | 按钮样式/尺寸 | Raised Rocker |
| 位数 | 8 | 开关驱动电平 | SPST |
| 典型触点布局 | SPST | 第一连接器安装类型 | :Through Hole |
产品信息
| 类型 | Rocker | 系列 | :76 |
| 已删除 | Compliant | 可清洗 | Yes |
| 开关类型 | :DIP | 电气寿命 | 2000/Switch |
| 转换前位置数 | 8 | ||
环境参数
| 机械寿命 | 2000Operations | 开关次数 | :35000 |
| 工作温度 | -40 to 85 °C | ||
相关型号

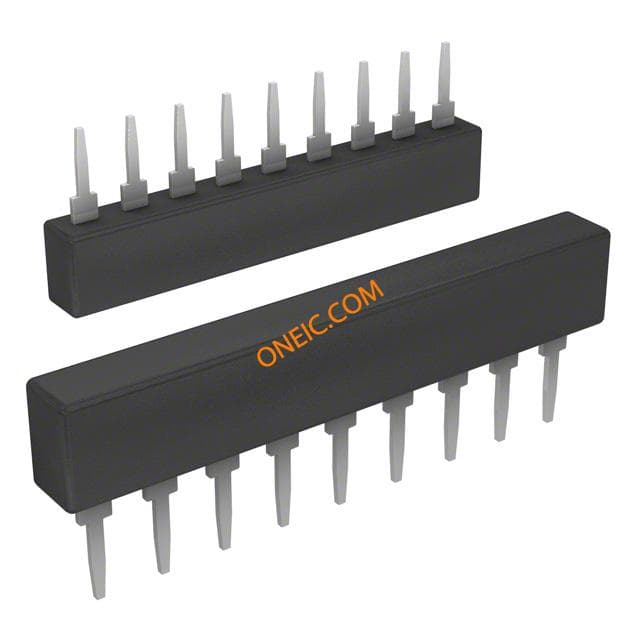

4609X-101-102LF
