点击放大查看

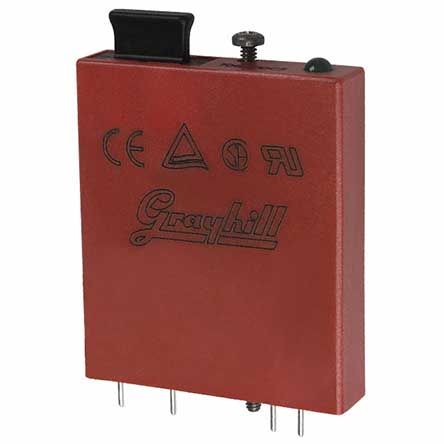

70G-ODC5
| 制造商 | Grayhill, Inc. |
| 描述 | OptoCoupler Transistor-Out 1-CH 4-Pin I/O Module Relays Output Module 60VDC 4000Vrms Thru-Hole OUTPUT MODULE DC G5 13MA 5VDC Module; DC Output; 60 VDC (Max.); 1 W/A (Typ.); SPST-Normally Open I/O MODULE, 60V, 3.5A Module;DCOutput;60VDC(Max.);1W/A(Typ.);SPST-NormallyOpen 单极常开 PCB（印刷电路板）安装 接口继电器模块, 0.02 → 3.5A, 6V dc |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 85364110 | 认证机构标志 | CE/CSA/TUV/UL |
电气参数
| 输入类型 | DC | 输出类型 | DC |
| 负载电流 | 3.5 A | 开启时间 | 0.02ms |
| 负载电压 | 60VDC | 额定电压 | 60VDC |
| 输出电流 | 0.02 ~ 3.5A | 关断延迟时间 | 0.05ms |
| 输入数量 | :1 | 输出数量 | :1 |
| 模拟输入/输出 | :1 | 隔离电压 | 4000Vrms |
| 电池组电压 | 3VDC | 最大额定电流 | 3.5A |
| 最小输入电压 | 60VDC | 输入偏置电流（最大） | 13mA |
机械参数
| 颜色 | Red | 重量 | 0.05 |
| 安装类型 | Screw | 端子类型 | PC Pins |
| 安装样式 | Through Hole | 典型触点布局 | :SPST-NO |
产品信息
| 类型 | DC | 样式 | G5 |
| 系列 | 70 | 产品特性 | Hold Down Screw, Fused, Status LED(s) |
| 技术 | Solid State | 模块/板类型 | Output Module |
| 有铅工艺兼容 | :No | ||
环境参数
| 测试温度 | :No | 工作温度 | 100 |
| 结工作温度 | 100C | ||
文档与媒体
