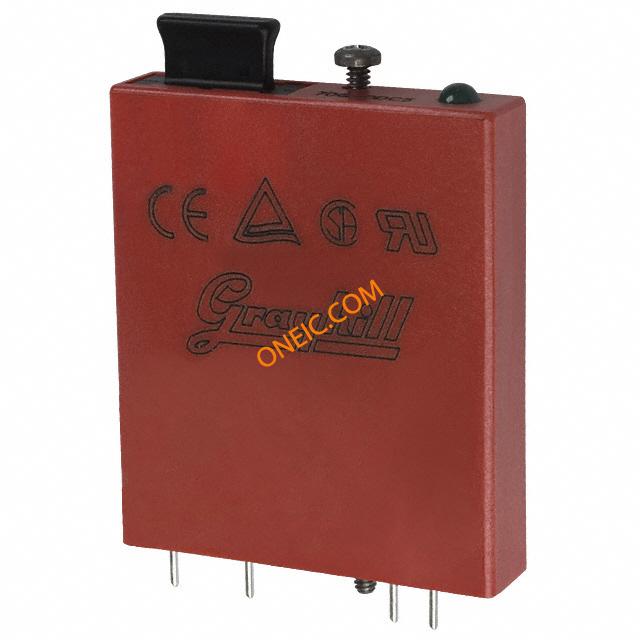

70G-ODC15
| 制造商 | Grayhill, Inc. |
| 描述 | OptoCoupler Transistor-Out 1-CH 4-Pin I/O Module Relays Output Module 60VDC 4000Vrms Thru-Hole OUTPUT MODULE DC G5 9MA 15VDC I/OModuel,G5,DigitalOutputDC,15VDCLogic,3-60VDCFast I/O Module, G5, digital output DC, 15Vdc logic, 3-60Vdc fast |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | RoHS Not Applicable |
| 认证机构标志 | CE/CSA/TUV/UL | ||
电气参数
| 输出端 | 3to60VDC | 输入类型 | DC |
| 输出类型 | DC | 输出范围 | 3to60VDC |
| 释放时间 | 0.05ms | 开启时间 | 0.02ms |
| 额定电压 | 60VDC | 输出电流 | 0.02 ~ 3.5A |
| 关断延迟时间 | 0.05ms | 供电电压 | 15VDC |
| 通道数量 | 1 | 接收电流 | 9mA |
| 隔离电压 | 4000Vrms | 电池组电压 | 3VDC |
| 输入偏置电流 | 9mA | 最大额定电流 | 3.5A |
| 最小输入电压 | 60VDC | 输入偏置电流（最大） | 9mA |
机械参数
| 颜色 | Red | 安装类型 | Screw |
| 端子类型 | PC Pins | 主要材料 | Control |
产品信息
| 类型 | DC | 样式 | G5 |
| 系列 | 70 | 产品特性 | Hold Down Screw, Fused, Status LED(s) |
| 技术 | Solid State | 主要用途 | Hold Down Screw, Fused, Status LED(s) |
| 制造商全称 | G5Series | 连接类型 | BoardMount |
| 模块/板类型 | Output Module | ||
环境参数
| 工作温度 | 100 | ||
