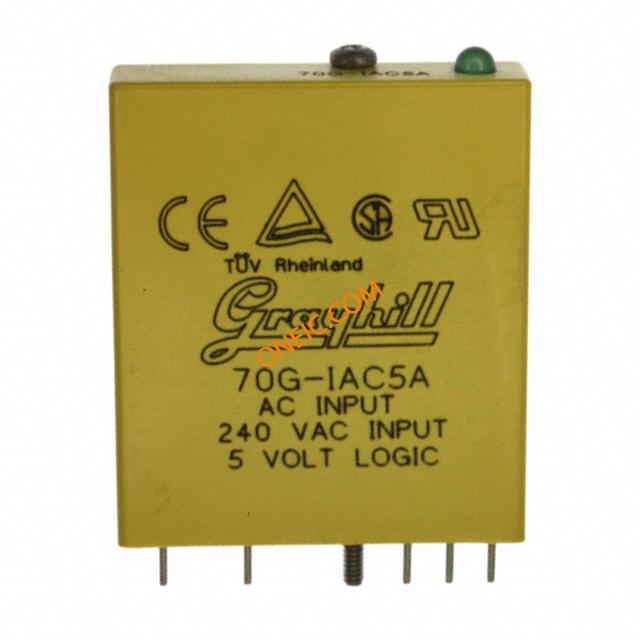

点击放大查看
70G-IAC5A
| 制造商 | Grayhill, Inc. |
| 描述 | Digital I/O Modules 5-Pin I/O Module Relays Input Module Thru-Hole/Plug-In INPUT MODULE AC 6MA 5VDC I/OModule,G5,DigitalInputAC,15VdcLogic,220VacLoad |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | RoHS Not Applicable |
| 认证机构标志 | CE/CSA/UL | ||
电气参数
| 输入端 | 180to280VAC | 输入类型 | AC |
| 输入范围 | 180to280VAC | 释放时间 | 20ms |
| 开启时间 | 20ms | 输出电流 | 10mA |
| 关断延迟时间 | 20ms | 供电电压 | 5VDC |
| 通道数量 | 1 | 接收电流 | 6mA |
| 隔离电压 | 4000VAC | 输入偏置电流 | 10mA |
| 最大额定电流 | 10mA | 最小输入电压 | 180 ~ 280VAC (240VAC Nom) |
| 典型输入电压 | 220VAC | 数字供电电压 | 5VDC (4.5 ~ 6VDC) |
| 输入偏置电流（最大） | 6mA | ||
机械参数
| 颜色 | Yellow | 安装类型 | Screw |
| 端子类型 | PC Pins/Screw Terminal | 安装样式 | Through Hole/Plug-In |
| 主要材料 | Control | ||
产品信息
| 类型 | AC | 样式 | G5 |
| 系列 | 70 | 产品特性 | Hold Down Screw, Status LED(s) |
| 技术 | Solid State | 主要用途 | Hold Down Screw, Status LED(s) |
| 制造商全称 | G5Series | 连接类型 | BoardMount |
| 模块/板类型 | Input Module | ||
