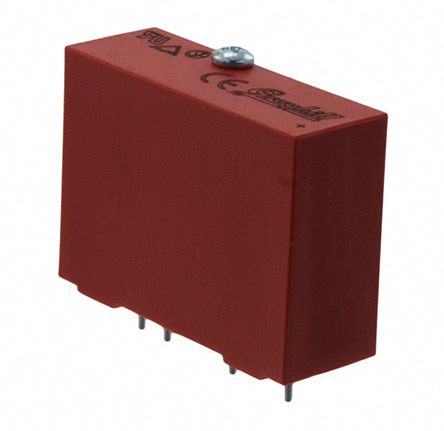

70-ODC5
| 制造商 | Grayhill, Inc. |
| 描述 | OptoCoupler Transistor-Out 1-CH 5-Pin OUTPUT MODULE DC STD 14MA 5VDC Module; DC Output; 60 VDC (Max.); 1 W/A (Typ.); SPST-Normally Open I/O Module Relays Output Module 60VDC 4000Vrms Thru-Hole DC I/O MODULE, SPST N/O Module;DCOutput;60VDC(Max.);1W/A(Typ.);SPST-NormallyOpen 单极常开 PCB（印刷电路板）安装 接口继电器模块, 0.02 → 3.5A, 10V dc |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85364900 | 认证机构 | :CE, CSA, TUV |
| 认证机构标志 | UL/CE/CSA/TUV | ||
电气参数
| 输入类型 | DC | 输出类型 | DC |
| 负载电流 | 3.5 A | 开启时间 | 0.02ms |
| 负载电压 | 60VDC | 浪涌电流 | :5A |
| 输出电流 | 0.02 ~ 3.5A | 关断延迟时间 | 0.05ms |
| 漏电流 | :1.5µA | 隔离电压 | 4000Vrms |
| 最大额定电流 | :3.5A | 最小输入电压 | 3 ~ 60VDC |
| 最小供电电压 | :3V DC to 60V DC | 静态电流（最大） | :0.02A |
| 输入偏置电流（最大） | 14mA | 平均整流电流 Io | :3.5A |
机械参数
| 颜色 | Red | 深度 | :15.2mm |
| 宽度 | :43.2mm | 长度 | :31.8mm |
| 重量 | 0.03568 | 安装类型 | Screw |
| 端子类型 | PC Pins | 安装样式 | Through Hole |
产品信息
| 类型 | DC | 样式 | Standard |
| 系列 | 70 | 产品特性 | Hold Down Screw |
| 技术 | Solid State | 附件类型 | :AC Output Module |
| 模块/板类型 | Output Module | 控制/显示类型 | :DC |
环境参数
| 工作温度 | :100°C | 结工作温度 | 100C |
