点击放大查看

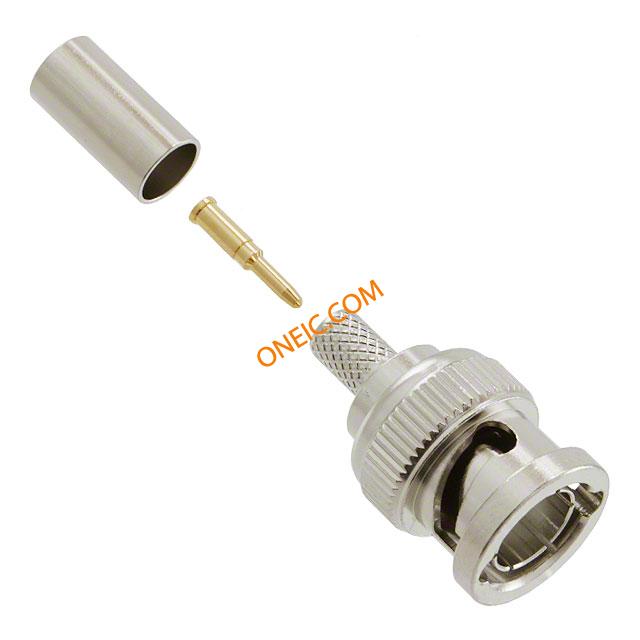

28-91037
| 制造商 | |
| 描述 | Conn BNC M 75Ohm Crimp ST Cable Mount CONN PLUG BNC RG-59/62 PLENUM RF Connectors / Coaxial Connectors BNC 3-PC CRIMP PLUG BELDEN 1506A CONNECTOR, COAXIAL, BNC, PLUG, CABLE 75OHMBNC3PCCRIMPTEFLON |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 2GHz | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电缆类型 | Belden 8281 | 本体表面处理 | Nickel |
| 电缆组 | RG-59 Plenum, 62 Plenum, Belden 1506A | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pin |
| 接触镀层 | :Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | :Brass |
| 端接样式 | Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | M |
| 连接类型 | Coaxial Cable | 射频系列/标准 | BNC |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
