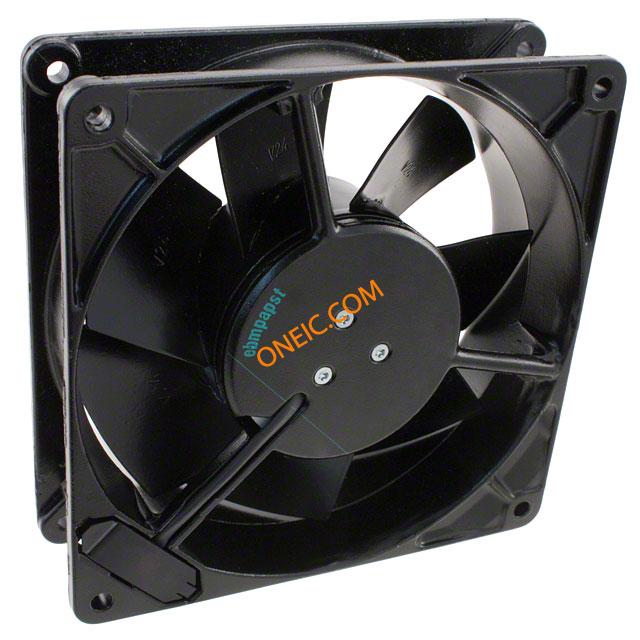

W2G115-AE31-13
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 5.7W 130CFM 48dB Flange Mount FAN TUBEAXIAL 127X38MM 24VDC FAN TUBEAXIAL; 127X38MM 24VDC Blowers 127mm 24VDC 130CFM Fan;DC;24V;127x127x38mm;Sq;130CFM;5.7W;48dBA;Leadwires |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | W2G115AE3113 |
| 子类别 | Blowers and Fans | 产品类别 | Blowers |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Vendor undefined / Vendor undefined | 欧盟RoHS | Compliant |
电气参数
| 噪声 | 48 dB(A) | 转速 | Counter Clockwise |
| 输入范围 | 18 to 30 | 最大功率 | 5.7W |
| 功率（瓦） | 5.70W | 额定功率 | 5.7W |
| 电压范围 | 18 ~ 30VDC | 额定电压 | 24VDC |
| 供电电压 | 24 V | ||
机械参数
| 尺寸 | 5x1.5(127x38)In.(mm) | 深度 | 127 |
| 高度 | 38 | 重量 | 1.6 lbs (725.7g) |
| 风量 | 130.0 CFM (3.68m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CCW |
| 端接方式 | Terminals | 轴承类型 | Ball |
| 安装类型 | Flange Mount | 壳体材料 | Die-Cast Aluminum |
| 总长度 | 127 | 刀片材料 | Steel |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Square - 127mm L x 127mm H x 38mm W | 端接样式 | Wire Leads |
| 风扇附件类型 | 5x1.5(127x38)In.(mm) | 总体尺寸 | 5x5x1.5In. |
产品信息
| 类型 | Square | 功能 | DC |
| 方向 | ExhaustoverStruts | 开关类型 | DC |
| 制造商全称 | W2G120Series | 配置 | Square |
环境参数
| 工作温度 | 72 | 自然散热热阻 | 130CFM |
文档与媒体
相关型号
50950-2-4039
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories FINGER GUARD FINGER GRD W2E142,W2G130, W2S130 Fan Accessories FINGER GUARD MetalFingerGuard

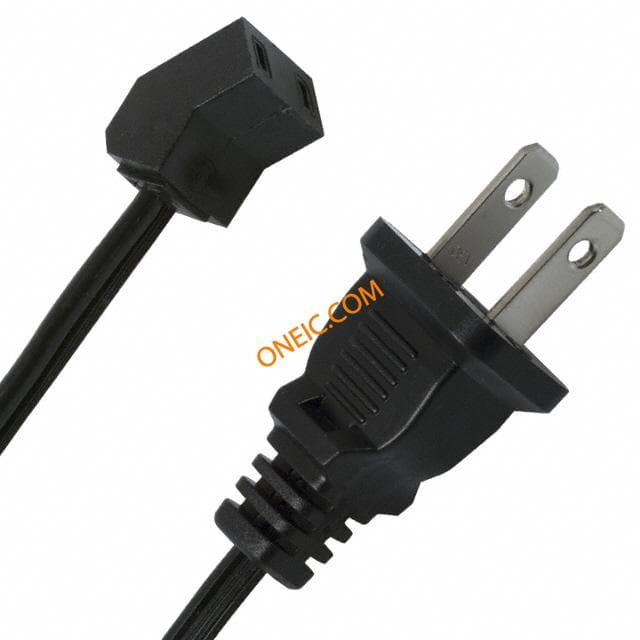

07145-SP072
Qualtek
AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG

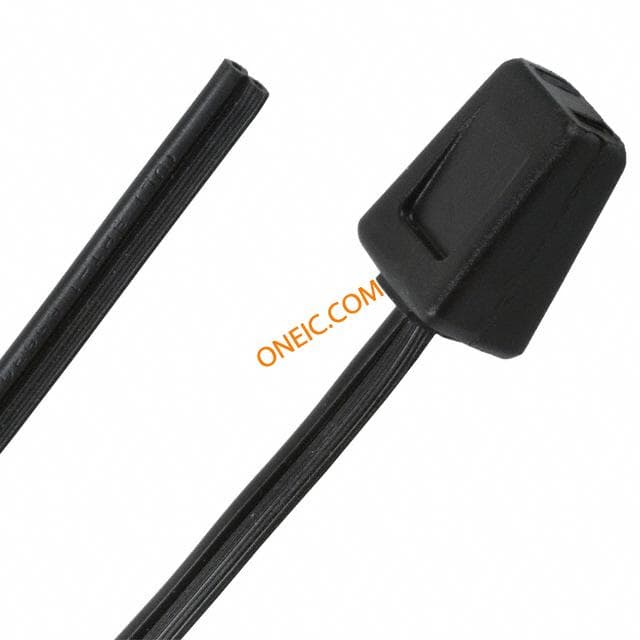

07100-72
Qualtek
AC Power Cords 72 FAN PWR CORD POWER CORD FAN STRAIGHT 72" Fan Cords & Accessories 72 FAN PWR CORD

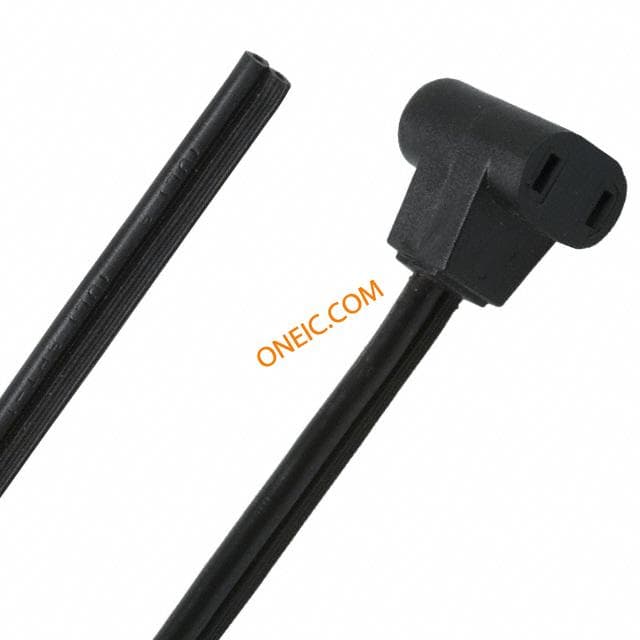

07199-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)
07100-SP036
Qualtek
AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD
07199-80
Qualtek
AC Power Cords MOLDED FAN CRD FEM T 80 CORD POWER FAN T-TYPE 80" Fan Cords & Accessories MOLDED FAN CRD FEM T 80 80in,T-PlugStyle,FanPowerCord Fan Accessories Fan Power Cords Cord Length (mm): 2034 Cord Length (in.): 80 Style: T-Type Cordage: SPT-1(18/2)

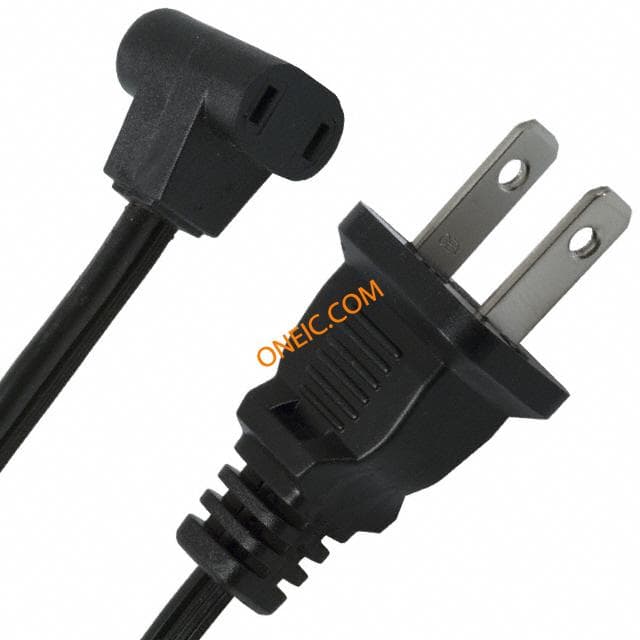

07199-SP072
