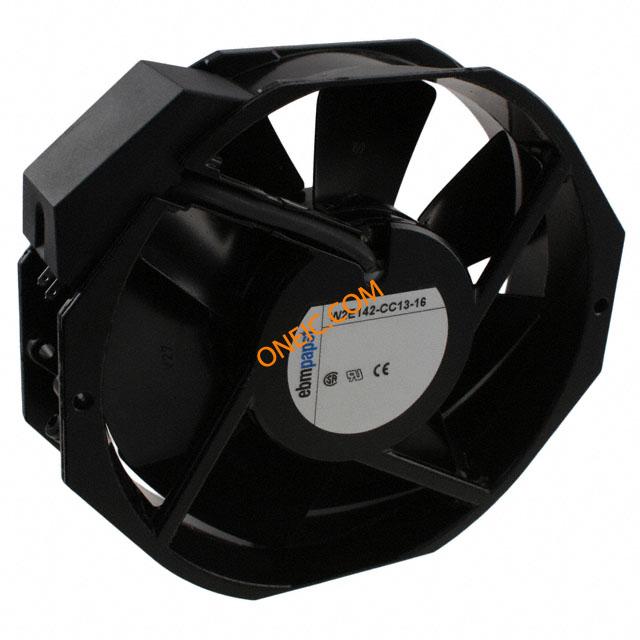

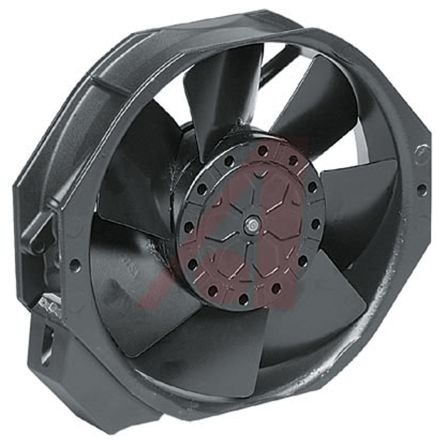

W2E142-CC13-16
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Ball Bearing 115V 16W 60Hz 175CFM 54dB Flange Mount FAN TUBEAXIAL 172X38MM 115VAC Fans Tubeaxial 150x38mm 24VDC Fan;AC;115V;172x150x38mm;Obround;175CFM;16W;54dBA;Terminals ebm-papst W2E142 系列 AC 轴流风扇, 115 V 交流, 150 x 172 x 38mm |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 44 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 噪声 | 54 dB(A) | 转速 | Counter Clockwise |
| 频率 | 60Hz | 功率（瓦） | 16.0W |
| 额定功率 | 16W | 额定电压 | 115VAC |
| 供电电压 | 115 V 交流 | 双电源电压（V+/-） | 交流 |
机械参数
| 尺寸 | 6.8x5.9x1.5(172x150x38)In.(mm) | 深度 | 38mm |
| 宽度 | 172mm | 高度 | 150mm |
| 重量 | 2 lbs (907.2g) | 风量 | 175.0 CFM (4.95m³/min) |
| 直径 | 142mm | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CCW |
| 端接方式 | Terminals | 轴承类型 | Ball |
| 安装类型 | Flange Mount | 壳体材料 | Die-Cast Aluminum |
| 总长度 | 172 | 刀片材料 | Steel |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 38mm W | 风扇附件类型 | 6.8x5.9x1.5(172x150x38)In.(mm) |
| 总体尺寸 | 6.8x5.9x1.5In. | ||
产品信息
| 类型 | Obround | 系列 | W2E142 |
| 功能 | AC | 方向 | ExhaustoverStruts |
| 开关类型 | AC | 制造商全称 | W2E142Series |
| 配置 | Obround | 其他规格 | 向后 |
环境参数
| 工作温度 | 75 | 自然散热热阻 | 175CFM |
| 结工作温度 | 75°C | ||
