点击放大查看

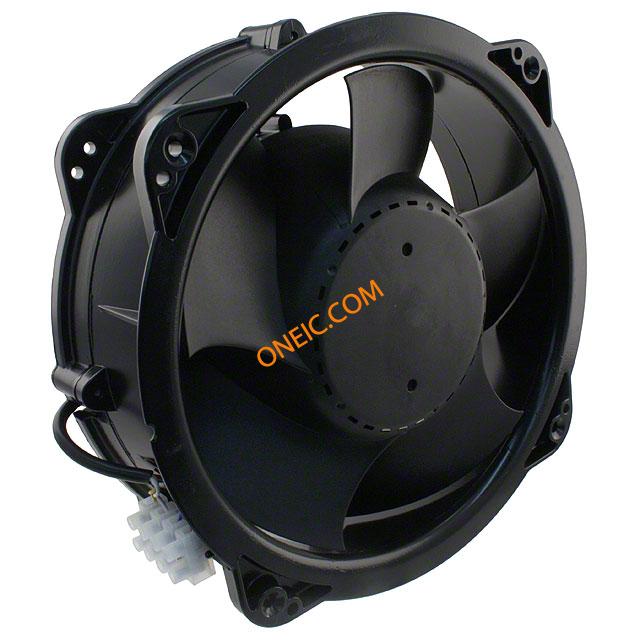

W1G208-BA73-52
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 48V 2.2A 96W 3500RPM 618CFM Flange Mount FAN TUBEAXIAL 232X80MM 48VDC Fans Size=260x80 mm CFM=618 VDC=48 |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 74 dB(A) | 功率（瓦） | 96W |
| 电压范围 | 36 ~ 57VDC | 额定电压 | 48VDC |
机械参数
| RPM | 3500 RPM | 重量 | 5.1 lbs (2.3kg) |
| 风量 | 618.0 CFM (17.50m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Terminals | 轴承类型 | Ball |
| 刀片材料 | Plastic | 框架材料 | Aluminum |
| 尺寸/外形 | Round - 232mm Dia x 80mm W | ||
产品信息
| 系列 | W1G208 | 功能 | DC |
环境参数
| 额定寿命 | 51000 hrs @ 40°C | 工作温度 | -13 ~ 162°F (-25 ~ 72°C) |
