点击放大查看

8412NGM

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	DC Fan Sintec Bearing 12V 1.3W 34CFM 26dB Flange Mount FAN TUBEAXIAL 80X25.4MM 12VDC Fan;DC;12V;80x80x25mm;Sq;34.1CFM;1.3W;26dBA;2600RPM;Leadwires
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	365 Days	子类别	Blowers and Fans
标准包装数量	1

合规参数

RoHS

Vendor undefined / Vendor undefined

欧盟RoHS

Compliant

电气参数

噪声	26 dB(A)	转速	Counter Clockwise
输入范围	8 to 15	功率（瓦）	1.30W
额定功率	1.3	电压范围	8 ~ 15VDC
额定电压	12VDC

机械参数

深度	80	高度	25.4
重量	0.31 lb (140.61g)	风量	34.0 CFM (0.963m³/min)
风扇类型	Tubeaxial	端接方式	Leads
轴承类型	Sintec	安装类型	Flange Mount
壳体材料	Polybutylene Terephthalate Polymer	总长度	80
刀片材料	Polyamide (PA), Fiberglass Reinforced	框架材料	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
尺寸/外形	Square - 80mm L x 80mm H x 25.4mm W

环境参数

工作温度

文档与媒体

PDF 文档

Accessories Quick Reference

PDF 文档

8400N Series Tubeaxial

PDF 文档

53199.pdf

相关型号

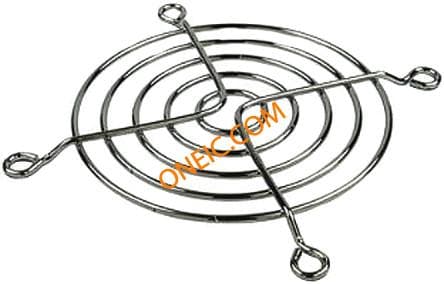

LZ22N
