点击放大查看

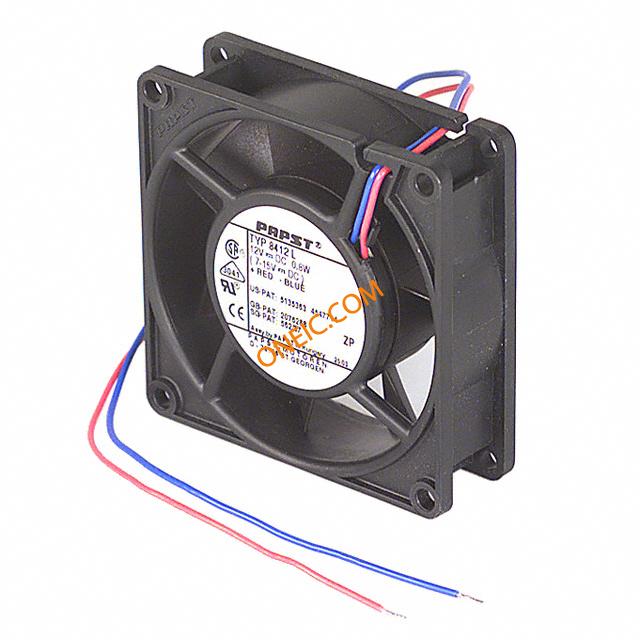

8412L

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	DC Fan Ball Bearing 12V 0.8W 21CFM 21dB Flange Mount FAN 80 X 25MM 12VDC Fan;DC;12V;80x80x25mm;Sq;21CFM;0.8W;21dBA;Leadwires
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	126 Days	其他名称	381-1101
子类别	Blowers and Fans	标准包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

噪声	21 dB(A)	转速	Counter Clockwise
输入范围	7 to 15	最大功率	0.8W
功率（瓦）	0.80W	额定功率	0.8W
电压范围	7 ~ 15VDC	额定电压	12VDC

机械参数

尺寸	3.2x1(80x25)In.(mm)	深度	80
高度	25.4	重量	0.31 lb (140.61g)
风量	21.0 CFM (0.595m³/min)	风扇类型	Tubeaxial
材料（通用）	Plastic	旋转范围	CCW
厚度	25	端接方式	Leads
轴承类型	Ball	安装类型	Flange Mount
壳体材料	Polybutylene Terephthalate Polymer	总长度	80
刀片材料	Polyamide (PA)	框架材料	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
主要材料	Fans	尺寸/外形	Square - 80mm L x 80mm H x 25mm W
风扇附件类型	3.2x1(80x25)In.(mm)	总体尺寸	3.2x3.2x1In.

产品信息

类型	Square	方向	ExhaustoverStruts
开关类型	DC	制造商全称	8400NSeries
配置	Square

环境参数

工作温度	75	自然散热热阻	21CFM
结工作温度	70°C

文档与媒体

PDF 文档

Accessories Quick Reference

PDF 文档

8400 Series, Tubeaxial
