点击放大查看

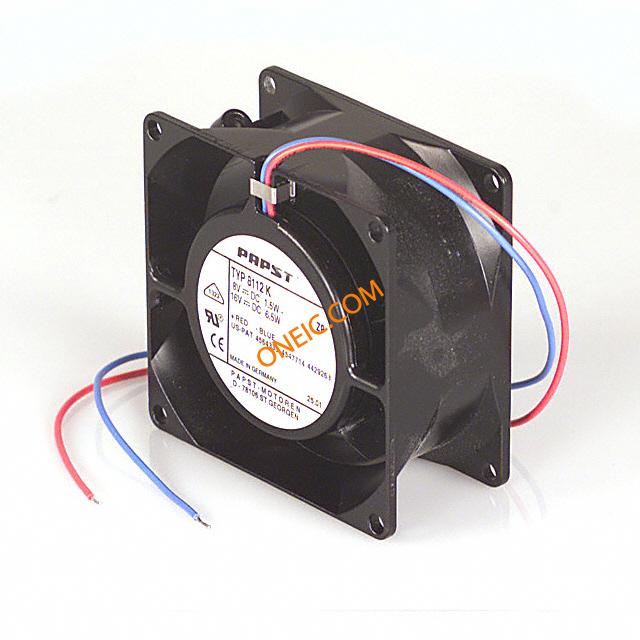

8112K
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | Tubeaxial, 80 x 80 x 38 mm, DC, CFM=25-49, V=12 FAN 80 X 38MM 12VDC Fan;DC;12V;80x80x38mm;Sq;35CFM;3W;39dBA;Leadwires |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 381-1100 |
| 子类别 | Not Specified | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 噪声 | 39 dB(A) | 最大功率 | 3W |
| 功率（瓦） | 3.00W | 额定功率 | 3W |
| 电压范围 | 8 ~ 16VDC | 额定电压 | 12VDC |
机械参数
| RPM | 3450 RPM | 尺寸 | 3.2x1.5(80x38)In.(mm) |
| 重量 | 0.937 lb (425.02g) | 风量 | 35.0 CFM (0.991m³/min) |
| 风扇类型 | Tubeaxial | 材料（通用） | Metal |
| 旋转范围 | CW | 端接方式 | 2 Wire Leads |
| 轴承类型 | Ball | 刀片材料 | Metal |
| 框架材料 | Metal | 主要材料 | Fans |
| 尺寸/外形 | Square - 80mm L x 80mm H x 38mm W | 风扇附件类型 | 3.2x1.5(80x38)In.(mm) |
| 总体尺寸 | 3.2x3.2x1.5In. | ||
产品信息
| 类型 | Square | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | 8100Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 85000 hrs @ 40°C | 工作温度 | -4 ~ 158°F (-20 ~ 70°C) |
| 自然散热热阻 | 35CFM | ||
文档与媒体
相关型号

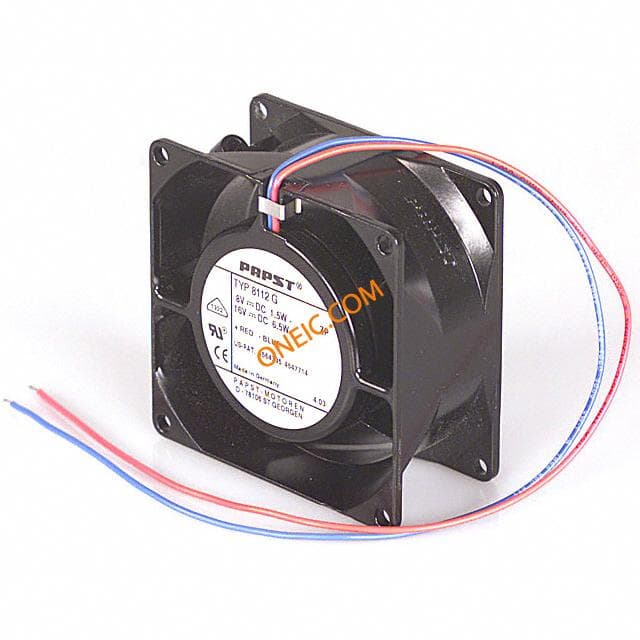

8112G
