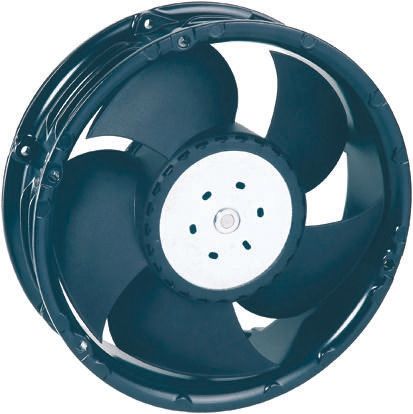

6318/2TDH4P
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 48V 150W 9200RPM 559.1CFM 75dB Flange Mount FAN TUBEAXIAL 172X50.8MM 48VDC S-Force DC fan PWM, 172mm 950cu.m/h 48V Fans 172mm 48VDC 559 CFM 75 dBA Fan;DC;48V;172x51mm;Round;559.1CFM;150W;75dBA;9200RPM;Terminals ebm-papst 6300 系列 直流 轴流风扇, 950m³/h, 48 V 直流, 150W, 172 (Dia.) x 51mm |
| 分类 |
商业参数
| 产品 | Fans | 其他名称 | 381-2319 |
| 产品类别 | Fans | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 噪声 | 75 dB(A) | 转速 | Counter Clockwise |
| 频率 | Not Required | 输入范围 | 36V to 72V |
| 输出类型 | 集电极开路输出 | 噪声系数 | 75 dB |
| 功率（瓦） | 150W | 额定功率 | 150 W |
| 电压范围 | 36 ~ 72VDC | 额定电压 | 48VDC |
| 供电电压 | 48 V | 最大功耗 | 150W |
| 双电源电压（V+/-） | 直流 | ||
机械参数
| RPM | 9200 RPM | 尺寸 | 6.8x2(172x51)In.(mm) |
| 深度 | Not Required mm | 高度 | 50.8 mm |
| 重量 | 2 lbs (907.2g) | 风量 | 559.1 CFM (15.83m³/min) |
| 直径 | 171.5 mm | 风扇类型 | Tubeaxial |
| 材料（通用） | Aluminum | 旋转范围 | CCW |
| 流速 | 950m³/h | 端接方式 | Lead Wire |
| 轴承类型 | Ball | 安装类型 | Flange Mount |
| 安装样式 | Flange | 壳体材料 | Aluminum |
| 总长度 | Not Required mm | 刀片材料 | Polyamide (PA), Fiberglass Reinforced |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Round - 172mm Dia x 50.8mm W | 风扇附件类型 | 6.8x2(172x51)In.(mm) |
| 总体尺寸 | 6.8x2In. | ||
产品信息
| 类型 | DC Fan | 系列 | 6300 |
| 产品特性 | PWM Control; Speed Sensor (Tach) | 功能 | DC |
| 方向 | ExhaustoverStruts | 开关类型 | DC |
| 制造商全称 | 6300Series | 配置 | Round |
环境参数
| 额定寿命 | 52500 hrs @ 40°C | 工作温度 | -4 ~ 149°F (-20 ~ 65°C) |
| 自然散热热阻 | 559.1CFM | 结工作温度 | 65C |
