点击放大查看

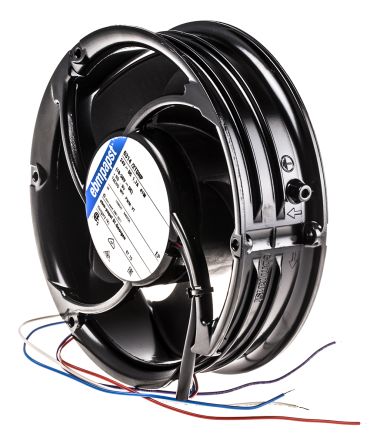

6314/2TDHP
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 40W 5500RPM 353.1CFM 60dB Flange Mount FAN TUBEAXIAL 172X50.8MM 24VDC S-Force DC fan PWM, 172mm 600cu.m/h 24V Fans 172mm 24VDC 353 CFM 64 dBA FAN, AXIAL, 172X51MM, 24VDC Fan;DC;24V;172x51mm;Round;353.1CFM;41W;64dBA;6000RPM;Terminals ebm-papst 6300 系列 直流 轴流风扇, 600m³/h, 24 V 直流, 40W, 172 (Dia.) x 51mm |
| 分类 |
商业参数
| 产品 | Fans | 其他名称 | 381-2318 |
| 产品类别 | Fans | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84145920 |
电气参数
| 噪声 | 60 dB(A) | 转速 | Counter Clockwise |
| 输入范围 | 16 to 36 | 功率（瓦） | 40W |
| 额定功率 | 41 W | 电压范围 | 16 ~ 36VDC |
| 额定电压 | 24VDC | 供电电压 | 24 V |
| 供电类型 | :Wire Leaded | 最小输入电压 | :16VDC |
| 平均正向功率 | :41W | 最大持续工作电压（MCOV） | :36VDC |
机械参数
| RPM | 5500 RPM | 尺寸 | 6.8x2(172x51)In.(mm) |
| 深度 | :51mm | 高度 | 50.8 |
| 重量 | 2 lbs (907.2g) | 风量 | 353.1 CFM (10.00m³/min) |
| 直径 | 171.5 | 风扇类型 | Tubeaxial |
| 材料（通用） | Aluminum | 旋转范围 | CCW |
| 流量 (CFM) | :600m³/h | 流量（SCFM） | :353.1cu.ft/min |
| 端接方式 | Lead Wire | 轴承类型 | Ball |
| 安装类型 | Flange Mount | 外径（标称值） | :172mm |
| 壳体材料 | Aluminum | 刀片材料 | Polyamide (PA), Fiberglass Reinforced |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Round - 172mm Dia x 50.8mm W | 外径 | :172mm |
| 风扇附件类型 | 6.8x2(172x51)In.(mm) | 引线长度 | :365mm |
| 总体尺寸 | 6.8x2In. | ||
产品信息
| 类型 | :S-Force | 系列 | 6300 |
| 产品特性 | PWM Control; Speed Sensor (Tach) | 功能 | DC |
| 方向 | ExhaustoverStruts | 开关类型 | DC |
| 制造商全称 | 6300Series | 配置 | Round |
环境参数
| 额定寿命 | 75000 hrs @ 40°C | 工作温度 | -4 ~ 158°F (-20 ~ 70°C) |
| 自然散热热阻 | 353.1CFM | 结工作温度 | 70°C |
