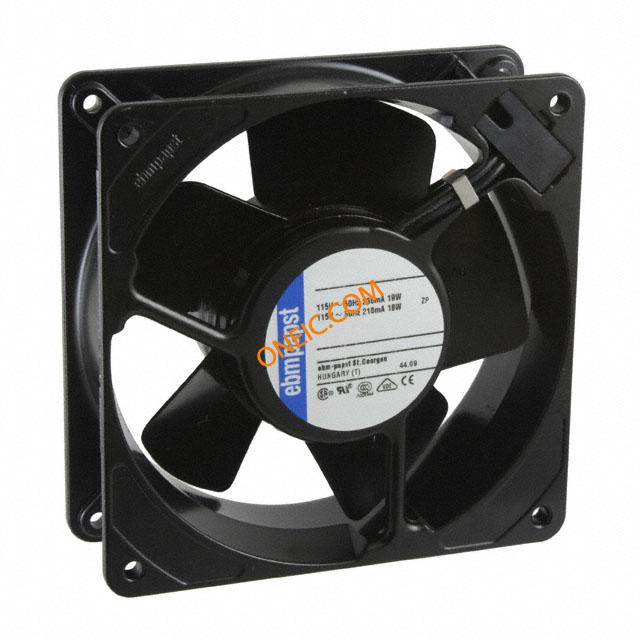

点击放大查看

4600Z

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	AC Fan Sintec-Sleeve Bearing 115V 18W 60Hz 3100RPM 105.9CFM 45dB Flange Mount FAN 119 X 38MM 115VAC Fans 119x38 115V 106CFM 18W 3100RPM 45dBA SB FAN, 119X119X38MM, 115VAC Fan;AC;115V;120x120x38mm;Sq;105.9CFM;18W;45dBA;3100RPM;Terminals ebm-papst 4000Z 系列 AC 轴流风扇, 180m³/h, 115 V, 18W, 119 x 119 x 38mm
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	交货时间	20 Days
其他名称	381-1029	子类别	Blowers and Fans
产品类别	Fans	标准包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	标准	ULListed,CSACertified,VDEApproved
海关税号	84145920

电气参数

噪声	45 dB(A)	转速	Clockwise
频率	:60Hz	最大功率	18W
量程（°/s）	:3100rpm	功率（瓦）	18.0W
额定功率	18 W	额定电压	115VAC
供电电压	115 V	供电类型	:Terminals
平均正向功率	:18W

机械参数

RPM	3100 RPM	尺寸	4.7x1.5(120x38)In.(mm)
深度	:38mm	宽度	:119mm
高度	38	重量	1.2 lbs (544.3g)
风量	105.9 CFM (3.00m³/min)	风扇类型	Tubeaxial
材料（通用）	Metal	旋转范围	CW
厚度	38mm	流量 (CFM)	:2.97m³/min
流量（SCFM）	:105.9cu.ft/min	端接方式	Leads
轴承类型	Sintec-Sleeve	高度（最大）	:119mm
标称内径	3100	安装类型	Flange Mount
壳体材料	Metal	总长度	119
刀片材料	Metal	框架材料	Metal
主要材料	Fans	尺寸/外形	Square - 119mm L x 119mm H x 38mm W
端接样式	Terminals	风扇附件类型	4.7x1.5(120x38)In.(mm)
总体尺寸	4.7x4.7x1.5In.

产品信息

类型	Square	系列	4000Z
功能	AC	方向	IntakeoverStruts
开关类型	AC	制造商全称	4600XSeries
配置	Square

环境参数

额定寿命	40000 hrs @ 40°C	工作温度	14 ~ 140°F (-10 ~ 60°C)
自然散热热阻	105.9CFM	结工作温度	60°C

文档与媒体

PDF 文档

Accessories Quick Reference

PDF 文档

AC-axial-fan-4600Z-ENG.pdf

PDF 文档

4000Z Series

PDF 文档

81082.pdf

PDF 文档

4000Z.PDF
