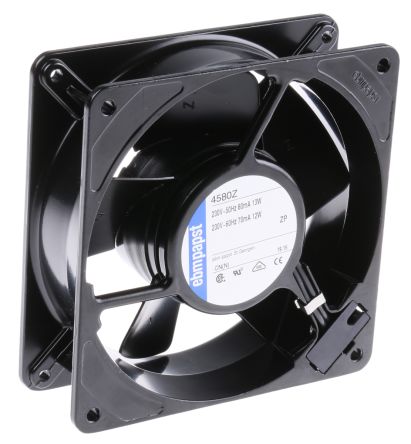

4580Z

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	AC Fan Sintec-Sleeve Bearing 230V 13W 50Hz 1900RPM 67.7CFM 30dB Flange Mount FAN 119 X 38MM 230VAC Blowers ACFAN SLEEVE BEARING 230V 30DB FLNG MT FAN, 119X119X38MM, 230VAC ebm-papst 4000 系列 AC 轴流风扇, 115m³/h, 230 V 交流, 13W, 119 x 119 x 38mm
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	112 Days	其他名称	381-1027
子类别	Blowers and Fans	产品类别	Blowers
标准包装数量	25

合规参数

RoHS	Vendor undefined / Vendor undefined	SVHC	:No SVHC (20-Jun-2013)
海关税号	85366910

电气参数

噪声	30 dB(A)	频率	:50Hz
量程（°/s）	:1700rpm	功率（瓦）	13.0W
额定电压	230VAC	供电电压	:230VAC
供电类型	:Terminals	平均正向功率	:13W

机械参数

RPM	1900 RPM	深度	:38mm
宽度	:119mm	重量	1.2 lbs (544.3g)
风量	67.7 CFM (1.91m³/min)	风扇类型	Tubeaxial
流量 (CFM)	:1.9m³/min	流量（SCFM）	:67.7cu.ft/min
端接方式	2 Terminals	轴承类型	Sintec
高度（最大）	:119mm	刀片材料	Metal
框架材料	Metal	尺寸/外形	Square - 119mm L x 119mm H x 38mm W
安装面板厚度	:104.8mm

产品信息

系列

:4000Z

功能

:AC

环境参数

额定寿命

50000 hrs @ 40°C

工作温度

14 ~ 149°F (-10 ~ 65°C)
