4184NXH

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	DC Fan Ball Bearing 24V 11W 4400RPM 139.49CFM 57dB Flange Mount FAN TUBEAXIAL 119X38MM 24VDC DC AXIAL FAN, 119MM SQ Fan;DC;24V;120x120x38mm;Sq;139.5CFM;11W;57dBA;Terminals ebm-papst 4100N 系列直流轴流风扇, 237m³/h, 24 V, 11W, 119 x 119 x 38mm
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	56 Days	子类别	Blowers and Fans
标准包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	84145920
抗辐射加固	No

电气参数

噪声	57 dB(A)	转速	Clockwise
频率	Not Required	输入范围	12V to 25V
噪声系数	57 dB	功率（瓦）	11.0W
额定功率	11 W	电压范围	12 ~ 28VDC
额定电压	24VDC	供电电压	:24VDC
供电类型	:Terminals

机械参数

RPM	4400 RPM	尺寸	4.7x1.5(120x38)In.(mm)
深度	119 mm	宽度	:119mm
高度	38 mm	重量	0.86 lb (390.09g)
风量	139.5 CFM (3.95m³/min)	直径	Not Required mm
风扇类型	Tubeaxial	材料（通用）	Metal
流量 (CFM)	:237m³/h	流量（SCFM）	:139.5cu.ft/min
端接方式	Terminals	轴承类型	Ball
高度（最大）	:119mm	安装类型	Flange Mount
安装样式	Flange	壳体材料	Aluminum
总长度	119 mm	刀片材料	Polyamide (PA), Fiberglass Reinforced
框架材料	Aluminum	主要材料	Fans
尺寸/外形	Square - 119mm L x 119mm H x 38mm W	外径	:119mm
风扇附件类型	4.7x1.5(120x38)In.(mm)	总体尺寸	4.7x4.7x1.5In.

产品信息

类型	DC Fan	系列	:4100N
已删除	Compliant	功能	:DC
方向	IntakeoverStruts	开关类型	DC
制造商全称	4100NSeries	配置	Square

环境参数

额定寿命	70000 hrs @ 40°C	工作温度	-22 ~ 158°F (-30 ~ 70°C)
自然散热热阻	139.5CFM	结工作温度	55C

文档与媒体

PDF 文档

Accessories Quick Reference

PDF 文档

DC-axial-fan-4184NXH-ENG.pdf

PDF 文档

4184NXH

PDF 文档

88866.pdf

相关型号

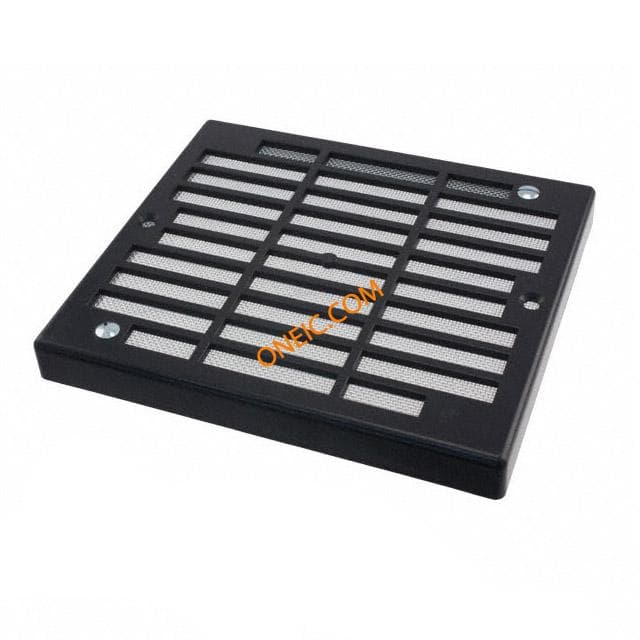

10016-1-5170

ebm-papst

Thrml Mgmt Access Grill Guard 119mm GRILL GRD F/119MM FAN Fan Accessories GRILL GRD

¥41.4460

详情

LZ30-4

ebm-papst

Thrml Mgmt Access Finger Guard 119mm Steel Wire Fan Cords & Accessories Finger Guard Steel FAN GUARD 119MM METAL Fan Accessories Finger Guard Steel Guard,Metal,For4000/9000SeriesAxialFans 119mm风扇金属，钢手指防护罩, 119 x 119mm

¥21.1385

详情

暂无图片

LZ40/60

ebm-papst

Fan Cords & Accessories KIT SCREEN 4000, 9000 SER KIT SCREEN FOR 4000, 9000 SER Fan Accessories KIT SCREEN 4000, 9000 SER

¥129.4720

详情

LZ60

ebm-papst

Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Fan Filter FILTER 119MM WIRE MESH METAL Aluminium Fan Mounted Fan Filter for 119mm Fan Fan Accessories Fan Filter FILTER, METAL MESH, FOR LZ40N Fan,Filterfor4000&9000SeriesEBMFans ebm-papst 铝制扇形过滤器, 用于119mm风扇

¥27.1800

详情

LZ40N

ebm-papst

Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Screen Kit Fits 4000/9000 FRAME PLASTIC FOR 4000, 9000 SER Glass Fibre Reinforced Polymer Fan Mounted Finger Guard Fan Accessories Screen Kit Fits 4000/9000 FILTER, DUST, METAL MESH Fan,Screen,BlackFiberglassFramew/InsertedAlumMesh,Usew/4000&9000Series ebm-papst 玻璃纤维强化聚酯制指形护罩

¥34.8840

详情

LZ30-6

ebm-papst

Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories GUARD FINGR 4100N SERIES LZ30-6 FAN GUARD 119MM PLASTIC Fan Accessories GUARD FINGR 4100N SERIES LZ30-6 FiberglassReinforcedPlastic(PPO)FingerGuard 119mm风扇塑料手指防护罩, 119 x 119mm

¥26.7920

详情

LZ30-5

ebm-papst

Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLASTIC FINGER GUARD SERIES 4000/9000 FAN GUARD 119MM PLASTIC Fan Accessories PLASTIC FINGER GUARD SERIES 4000/9000

¥25.2450

详情

LZ30P

ebm-papst

Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories Plastic Finger Guard Fits 4000/9000 FINGER GUARD PLAST 4000,9000 SER Fan Accessories Plastic Finger Guard Fits 4000/9000 Thrml Mgmt Access Finger Guard Plastic FINGER GUARD FAN 119MM SQ FiberglassReinforcedPlastic(PPO),ForSeries2500S,4000,andModel5500S ebm-papst 黑色 119mm风扇塑料手指防护罩 , 127 x 127mm

¥18.1200

详情

LZ210

ebm-papst

Thrml Mgmt Access Screw Clip Steel Fan Cords & Accessories Clip Nut 6-32/M3.5 Self-tapping STEEL MOUNTING SCREW CLIP Threaded Clip For 119 127 & 135mm Fans Fan Accessories Clip Nut 6-32/M3.5 Self-tapping FIXING CLIP, PK4 FAN CLIP Accessory;SteelScrewCliptoMountFanswithThreadedPin6-32UNC/3.5DIN7970 安装螺丝夹风扇安装硬件, 使用于4000 / 5100 / 5200 / 5600 / 5900 / 7000 和 9000 风扇系列

¥5.7120

详情

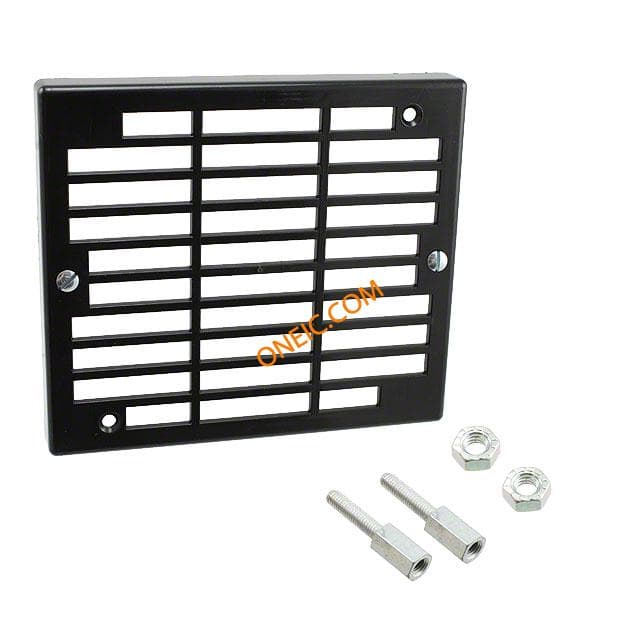

B10017-1-5170

EBM-Papst Industries Inc

GRILL GRD & FLTR F/119MM FAN

¥99.8920

详情

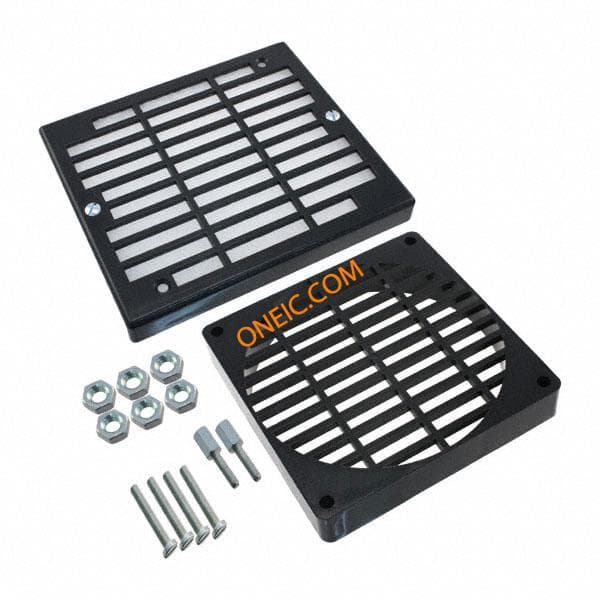

B10018-1-5170

EBM-Papst Industries Inc

GRILL GRD FLTR&SPACR F/119MM FAN

¥69.2920

详情

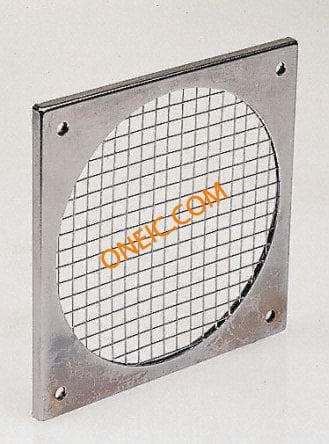

PRF120
