611-0510
| 制造商 | |

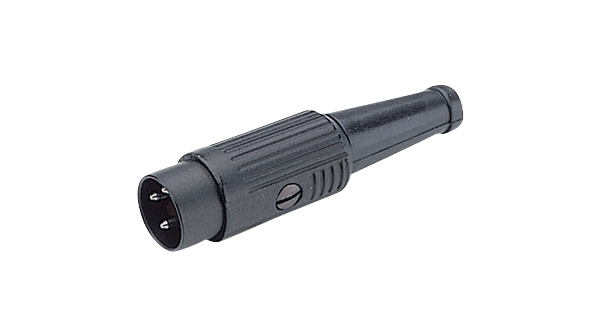

| 描述 | DIN Connectors PLUG 5P 60 DEG BLK PLUG, DIN, BLACK, 240DEG, 5POLE Plug; DIN; male; PIN:5; Pin layout:240°; straight; for cable; 34V
sale Cable Connector black 5P 5 'C', 611-0510, Deltron Components |
| 分类 |
商业参数
| 产品类别 | DIN Connectors | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 100 V | 供电电压 | DIN |
| 接触电阻 | :10mohm | 最大额定电流 | 4 A |
机械参数
| 颜色 | Black | 长度 | :60.3mm |
| 重量 | 0.022 | 材料（通用） | :Diecast, Nickel Plated |
| 方向 | straight | 安装类型 | soldering |
| 行程角度 | 240 | 连接器类型 | :Audio, DIN |
| 接触镀层 | Silver | 安装样式 | Cable |
| 本体材料 | :Metal | 材料表面处理 | blackened |
| 触头材料 | Brass | 包装数量 | 100 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 连接器颜色 | :Black | 触点数 | 5 |
| 接触件端接 | :Screw | 位数 | 5 |
| 触点材料 - 镀层 | silver plated | 外壳与棱镜材料 | zinc alloy |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 240° |
| 外径-未扩张 | :5.5mm | ||
产品信息
| SPG | 100 | 连接器性别 | Male |
| 系列 | :- | 单元数量 | 1 |
环境参数
| 工作温度 | :70°C | ||
