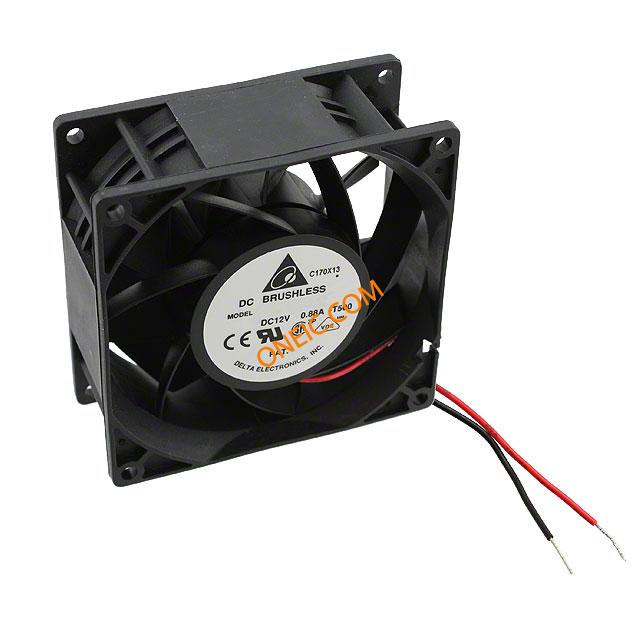

PFB0912EHE-T500

制造商	Delta Electronics, Inc.
描述	DC Fan Ball Bearing 12V 0.68A 8.16W 4800RPM 103.67CFM 54dB Flange Mount FAN DC 12V IP55 92X92X38MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

噪声	54 dB(A)	转速	Clockwise
输入范围	7 to 13.2	功率（瓦）	8.16W
额定功率	8.16	电压范围	7 ~ 13.2VDC
额定电压	12VDC	输出电流	0.68
最大额定电流	0.680A

机械参数

RPM	4800 RPM	深度	92
高度	28	重量	0.551 lb (249.93g)
风量	103.7 CFM (2.94m³/min)	风扇类型	Tubeaxial
端接方式	Lead Wire	轴承类型	Ball
安装类型	Flange Mount	静压	0.691 in H2O (172.1 Pa)
壳体材料	Plastic	总长度	92
刀片材料	Plastic	框架材料	Plastic
最大压力	0.691inH2O	尺寸/外形	Square - 92mm L x 92mm H x 38mm W

产品信息

产品特性

IP55

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 140°F (-10 ~ 60°C)

文档与媒体

PDF 文档

PFB 92x92x38MM
