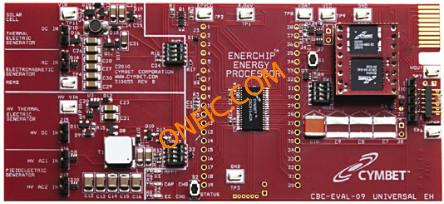

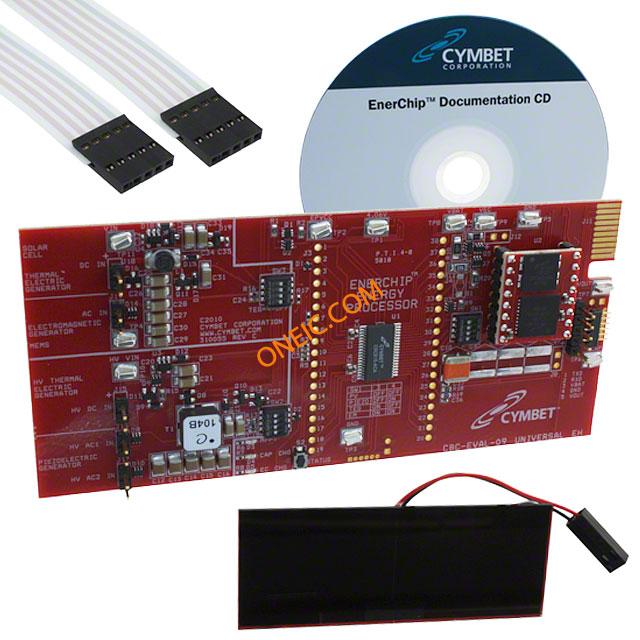

CBC-EVAL-09
| 制造商 | Cymbet Corporation |
| 描述 | Power Management IC Development Tools EnerChip EP Universal EH Kit ENERCHIP EP ENERGY HARVEST EVAL CBC-EVAL-09, Energy Harvesting Kit With CBC51100 Module, Solar Cell Panel, 38-Pin, 5 x 2in CBC915, ENERGY HARVESTING, EVAL KIT |
| 分类 |
商业参数
| 产品 | Power Management Development Tools | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84735080 | ||
电气参数
| 核心类型 | :- | 额定电压 | 4.06 V |
| 元件数量 | :- | ||
机械参数
| 宽度 | 2in | 长度 | 5in |
| 重量 | 0.15 | 尺寸/外形 | 5 x 2in |
| 位数 | 38 | ||
产品信息
| 类型 | Energy Harvesting | 内容 | Board, Cable, CD, Solar Cell |
| 嵌入式 | No | 产品特性 | :- |
| 套件类型 | Energy Harvesting | 套件内容 | CBC51100 Module, Solar Cell Panel |
| 主要用途 | Power Management, Energy Harvesting | 制造商全称 | :- |
| 工具类型/特性 | EnerChip CBC51100 | 主要特性 | EM/RF, Solar, Thermal, Vibration Energy Processor |
| 使用的IC/零件 | CBC915-ACA, CBC51100 | 应用细节 | :Energy Harvesting |
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | 工作温度 | + 70 C |
