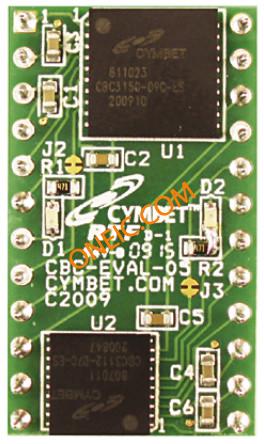

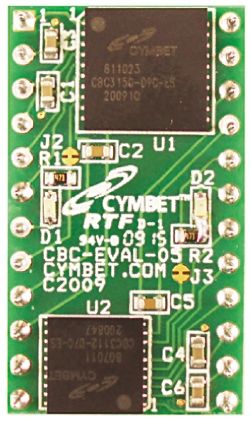

CBC-EVAL-05
| 制造商 | Cymbet Corporation |
| 描述 | Power Management IC Development Tools EnerChip CC Evaluaton Kit ENERCHIP CC EVAL KIT CBC-EVAL-05, Power Management Kit With Evaluation Module, 24-Pin, 30.48 x 17.18 x 5mm CBC3112, CBC3150, EVALUATION KIT EnerChip CC Evaluation Kit |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 84735080 | ||
电气参数
| 核心类型 | :- | 接口 | USB |
| 额定电压 | 2.5 V to 5.5 V | 元件数量 | :- |
机械参数
| 宽度 | 17.18mm | 高度 | 5mm |
| 长度 | 30.48mm | 重量 | 0.106 |
| 尺寸/外形 | 30.5 mm x 17.2 mm | 位数 | 24 |
产品信息
| 类型 | Battery Management | 内容 | Board |
| 嵌入式 | No | 产品特性 | :- |
| 套件类型 | Power Management | 套件内容 | Evaluation Module |
| 主要用途 | Power Management, Battery Charger | 制造商全称 | :- |
| 工具类型/特性 | CBC3112, CBC3150 | 主要特性 | Thin Film Rechargeable Solid State Battery |
| 使用的IC/零件 | CBC3112, CBC3150 | 次要特性 | 12 µAh and 50 µAh Capacity Batteries |
| 应用细节 | :Energy Harvesting | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -20 °C |
