商业参数
| 标准包装数量 | 20 | ||
合规参数
| 认证机构 | CB, CE, cUL, TUV, UL | ||
电气参数
| 效率 | 70% | 功率（瓦） | 250W |
| 电源调整率 | ±5% | 负载调整率 | ±5% |
| 输出电流 | 24 VDC @ 6A | 输出数量 | 2 |
| 供电类型 | Switching (Open Frame) | 最大功率（瓦特） | 250W |
| 最小输入电压 | 12V, 24V | ||
机械参数

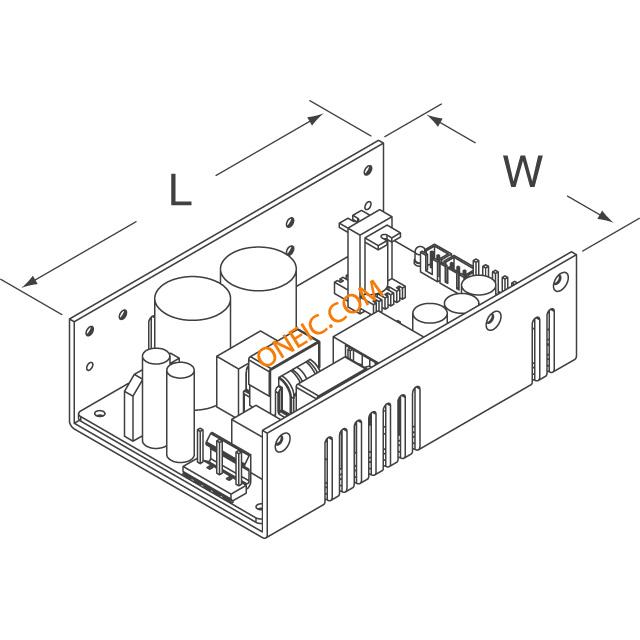

| 安装类型 | Chassis Mount | 尺寸/外形 | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) |
产品信息
| 类型 | Standard Product | 应用 | Commercial |
环境参数
| 工作温度 | 0°C ~ 70°C | ||
文档与媒体
