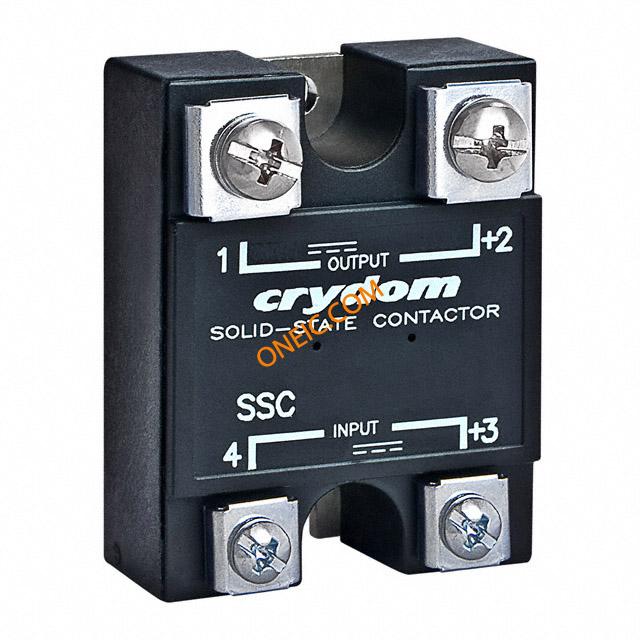

SSC800-25-36
| 制造商 | Custom Sensors & Technologies (CST) |
| 描述 | Solid State Relays - Industrial Mount CONTACTOR 30-36VDC CONTACTOR DC SSR 25A 800VDC 36V Relay;SSR;HighVoltage;Cur-Rtg25A;Ctrl-V36DC;Vol-Rtg0-800DC;Pnl-Mnt;4Pin Solid State Relay Control Voltage: 36 VDC Load Current: 25 Amps Load Voltage: 800 VDC Output Configuration: 1A SPST-NO Mounting: Panel Mount |
| 分类 |
商业参数
| 产品类别 | Solid State Relays - Industrial Mount | 标准包装数量 | 5 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 输出端 | SCR | 电路 | SPST-NO (1 Form A) |
| 输出类型 | DC | 负载电流 | 25A |
| 开启时间 | 1.5 | 最大电压 | 900 |
| 电压范围 | 32-40 | 负载电压 | 0 ~ 800 V |
| 额定电压 | 800VDC | 浪涌电流 | 75 |
| 输入阻抗 | 2400 | 最大直流电压 | 32 |
| 供电电压 | 32 VDC to 40 VDC | 电容范围 | 50 pF |
| 标称电压 | 36 | 连接器阻抗 | Screws and Saddle Clamps Furnished, Unmounted |
| 介电强度 | 2500 Vrms | 最大额定电流 | 25 A |
| 调谐电压 (VDC) | 1 | 绝缘电阻 | 10^9 Ohm |
| 最小输入电压 | 32 ~ 40VDC | 最小供电电压 | 0 VDC to 800 VDC |
| 输入偏置电流（最大） | 15 mA | 开通/关断时间（典型值） | 1.5 |
| 通态峰值电压（最大） | 1.6 | 漏电流（IS(off)）（最大） | 0.3 |
| 驱动电压（最大Rds On，最小Rds On） | 36VDC | ||
机械参数
| 重量 | 3.0 oz. (86.5g) | 包装方式 | Bulk |
| 端接方式 | SaddleClamp | 安装类型 | Chassis Mount or Panel Mount |
| 安装样式 | Panel | 引脚数 | 4 |
| 封装形式 | Hockey Puck | 端接样式 | Screw |
产品信息
| 类型 | Relays | 系列 | SSC |
| 功能 | HighVoltage | 继电器类型 | Contactor |
| 制造商全称 | SSCSeries | 产品子类型 | Industrial Mount |
| 卡标准 | Solid State Relay | 控制/显示类型 | 36 VDC |
| 输出配置 | 1A NO | ||
环境参数
| 工作范围 | 0-800 | 存储接口 | -40 to 125°C |
| 热阻 | 0.8 | 工作温度 | -30 to 80°C |
