点击放大查看

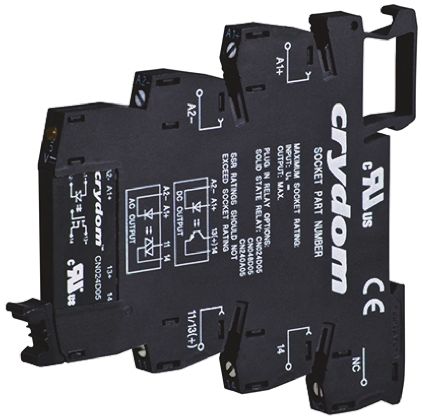

DRA-CN048D05
| 制造商 | |
| 描述 | Solid State Relays - Industrial Mount CN048D05 SSR / DRS CN05 Skt Assy Relay SSR 6mA 12V DC-IN 0.1A 48V DC-OUT RELAY SSR 0.1A 48VDC DIN-RAIL 100mA DIN Rail Panel Mount, Zero Crossing Solid State Relay, 48V dc ASSEMBLY;RELAY,DINRAILMOUNT,240VOLTS Crydom 100 mA DIN Rail安装 固态继电器, 零交叉切换, 48 V 直流 |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 输出端 | AC Output | 电路 | SPST-NO (1 Form A) |
| 输入类型 | DC | 输出类型 | DC |
| 负载电流 | 100mA | 开启时间 | 20 μs |
| 负载电压 | 0 ~ 48 V | 额定电压 | 12 |
| 输出电流 | 0.1 | 供电电压 | 3 VDC to 12 VDC |
| 隔离电压 | 3750 | 电池组电压 | 0 V dc |
| 最大额定电流 | 100 mA | 最小负载要求 | 1 mA |
| 最小输入电压 | 3 ~ 12VDC | 输出电压（最大） | 48 |
| 最小供电电压 | 0 VDC to 48 VDC | 输入逻辑高电平 | 3 → 12 V 直流 |
| 限压电压（最大） | 48 V 直流 | 关态电流（最大） | 0.001 mA |
| 静态电流（最大） | 1 mA | 输入偏置电流（最大） | 6(Typ) |
| 峰值脉冲电流（8/20µs） | 0.3 | ||
机械参数
| 深度 | 6.1mm | 宽度 | 6.1 |
| 高度 | 80mm | 长度 | 92.6mm |
| 包装方式 | Bulk | 触点形式 | 1 Form A (SPST-NO) |
| 安装类型 | DIN Rail | 安装样式 | DIN Rail |
| 封装形式 | Module | 总长度 | 80 |
| 尺寸/外形 | 92.6 x 6.1 x 80mm | 端接样式 | Screw |
| 外壳尺寸-插件 | 92.6 | 最小工作高度 | 0 V 直流 |
| 中压缩操作力 | 20 μs | ||
产品信息
| 系列 | DRACN | 继电器类型 | Relay |
| 开关类型 | Zero Crossing | 电路类型 | 1 Form A |
| 产品子类型 | Industrial Mount | ||
环境参数
| 工作温度 | -25 → +60°C | ||
