点击放大查看

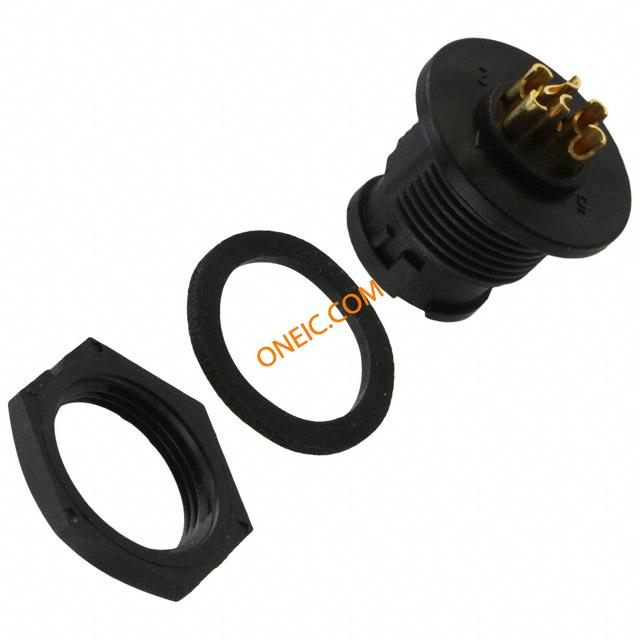

7282-6PG-300

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 6P PIN PANEL MNT Conn Field Installable PIN 6 POS Solder Cup ST Panel Mount 6 Terminal 1 Port CONN RCPT 6POS PNL MNT PIN Connector;#20;SolderCup;6;Pin;GoldoverNickel600V
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Mini-Con-X	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

额定电压

600V

机械参数

深度	20.6	高度	23.5
直径	23.5	包装方式	Bulk
出线方向	No	方向	Keyed
外壳样式	Plug	端接方式	Solder Cup
触头类型	6Signal	安装类型	Panel Mount
外壳镀层	Gold over Nickel	连接器类型	Receptacle, Male Pins
接触镀层	Gold Over Nickel	紧固类型	Bayonet Lock
安装样式	Panel	触头材料	Brass
端接样式	Solder Cup	第一触头极性	PIN
触点数	6	位数	6
外壳材料及表面处理	Nylon

产品信息

类型	Field Installable	系列	Mini-Con-X
产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 115°C

文档与媒体

在线文档

Mini-Con-X Part Number Guide

PDF 文档

Maxi(Mini)-Con-X Drawing

PDF 文档

Cable Assemblies/Connector Catalog

PDF 文档

83441.pdf
