点击放大查看

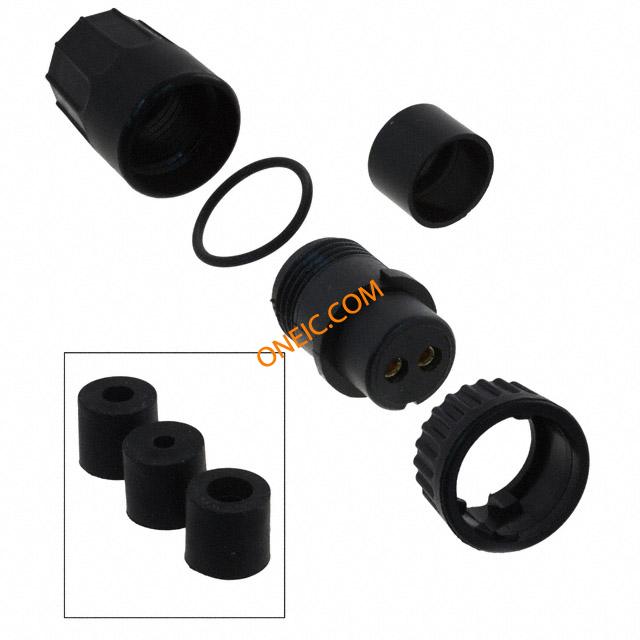

3182-2SG-3DC

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 2P SOCKET CBL END DAISY CHAIN GRMMT Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port Standard Circular Connectors 2P SOCKET CBL END DAISY CHAIN GRMMT CONN PLUG 2POS CABLE SKT CONNECTOR, FREE, FEMALE, 2WAY Connector;#12;SolderCup;2;Socket;GoldoverNickel;0.365in.;600V
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Multi-Con-X	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Supplier Unconfirmed
海关税号	85369010

电气参数

额定电压

600V

机械参数

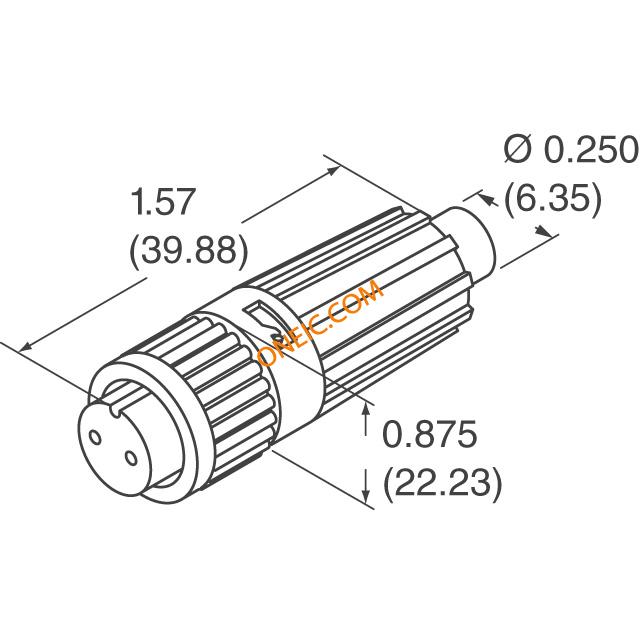

重量	0.01	直径	22.2
包装方式	Bulk	出线方向	No
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触头类型	2Signal
安装类型	Cable Mount	外壳镀层	Gold over Nickel
连接器类型	Plug, Female Sockets	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	安装样式	Free Hanging
插入角度	:12-2	本体材料	:Nylon (Polyamide)
触头材料	Brass	总长度	39.9
端接样式	Solder Cup	第一触头极性	SKT
触点数	2	接触件端接	:Solder
位数	2	外壳尺寸-插件	:12
外壳材料及表面处理	Nylon	第一连接器安装类型	:Cable

产品信息

类型	Field Installable	连接器性别	:Socket
系列	Multi-Con-X	产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 115°C

文档与媒体

在线文档

Cable Assemblies & Connectors Catalog

PDF 文档

83420.pdf
