23282-31PG-350
| 制造商 | |
| 描述 | Standard Circular Connector MEGA-CON CBL END #20 SOLDER Conn Circular PIN 31 POS Solder Cup ST Cable Mount 31 Terminal 1 Port Standard Circular Connectors MEGA-CON CBL END #20 SOLDER CONN PLUG 31POS CABLE PIN MEGA-CON CABLE CONNECTOR, 31way pin MEGA-CONCABLECONNECTOR,31waypin MEGA-CONCABLEEND#20SOLDER Switchcraft MEGA-CON-X 系列 31路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 商标名 | Mega-Con-X | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 2.3A |
机械参数
| 外形尺寸(长x宽) | 32.2mm | 直径 | 32.2 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 32.2mm | 方向 | Keyed |
| 端接方式 | Solder Cup | 触头类型 | 31Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 90.2 |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Quick Lock |
| 触点数 | 31 | 位数 | 31 |
| 外壳材料及表面处理 | Nylon | ||
产品信息
| 类型 | Circular | 连接器性别 | PL |
| 系列 | Mega-Con-X | 产品特性 | Cable Clamp |
| 产品子类型 | Connectors | ||
环境参数
| 密封等级 | IP67 | 防护等级 | Weathertight |
| 工作温度 | -40°C ~ 115°C | ||
文档与媒体
相关型号
24281-31SG-3ES
Conxall / Switchcraft
Standard Circular Connector MEGA-CON PANEL #20 CRIMP MEGA-CON PANEL #20 CRIMP Standard Circular Connectors MEGA-CON PANEL #20 CRIMP CONN RCPT 31POS PNL MNT SKT MEGA-CONPANEL#20CRIMP
24291-31SG-3ES
Conxall / Switchcraft
Standard Circular Connector MEGA-CON PANEL #20 PC MEGA-CON PANEL #20 PC Standard Circular Connectors MEGA-CON PANEL #20 PC CONN RCPT 31POS PNL MNT SKT MEGA-CONPANEL#20PC
24282-31SG-3ES
Conxall / Switchcraft
Standard Circular Connector MEGA-CON PANEL #20 SOLDER MEGA-CON PANEL #20 SOLDER Standard Circular Connectors MEGA-CON PANEL #20 SOLDER CONN RCPT 31POS PNL MNT SKT MEGA-CONPANEL#20SOLDER
24291-31SG-300
Conxall / Switchcraft
Standard Circular Connector MEGA-CON PANEL #20 PC MEGA-CON PANEL #20 PC Standard Circular Connectors MEGA-CON PANEL #20 PC CONN RCPT 31POS PNL MNT SKT MEGA-CONPANEL#20PC

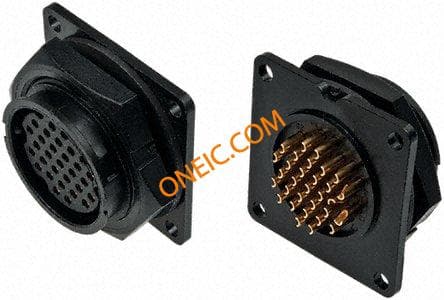

24282-31SG-300
Conxall / Switchcraft
Standard Circular Connector MEGA-CON PANEL #20 SOLDER MEGA-CON PANEL #20 SOLDER Standard Circular Connectors MEGA-CON PANEL #20 SOLDER CONN RCPT 31POS PNL MNT SKT 31 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts MEGA-CON-X Series MEGA-CONPANELMOUNT,31waysockets MEGA-CONPANEL#20SOLDER Switchcraft MEGA-CON-X 系列 31路 面板安装 直向 连接器 插座 , 母触点

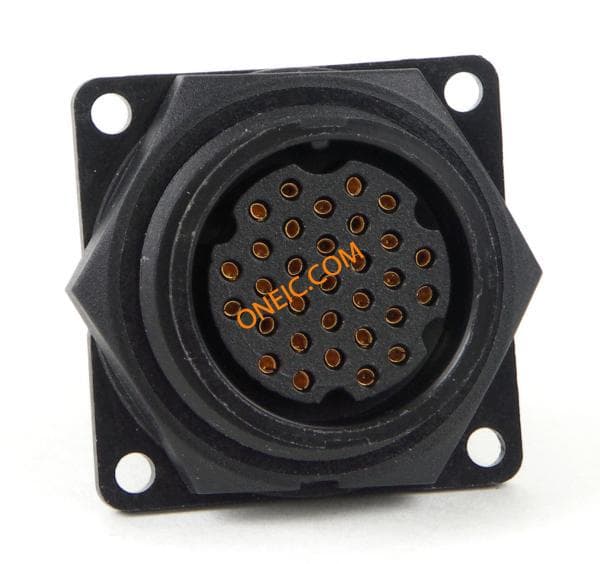

24280-31SG-300
