点击放大查看

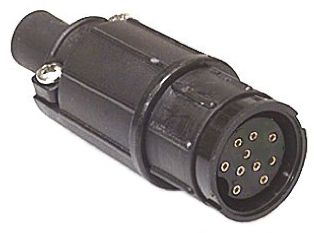

15382-10SG-326
| 制造商 | |
| 描述 | Standard Circular Connector 10P SCKT CBL TO CBL O.D.=.26-.30 Conn Field Installable SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port CONN RCPT 10POS CABLE SKT MAXI-CONCABLEPLUG,10waysocket MAXI-CONCABLE-CABLE#16SOLDER Switchcraft MAXI-CON-X 系列 10路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Maxi-Con-X | 其他名称 | SC1201 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 13A |
机械参数
| 外形尺寸(长x宽) | 26.9mm | 直径 | 26.9 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 触头类型 | 10Signal |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 触头材料 | Brass | 壳体材料 | 尼龙 |
| 总长度 | 63.5 | 端接排数 | 焊接 |
| 第一触头极性 | SKT | 触点数 | 10 |
| 位数 | 10 | 外壳材料及表面处理 | Nylon |
产品信息
| 类型 | Field Installable | 系列 | Maxi-Con-X |
| 产品特性 | Cable Clamp | 产品子类型 | Connectors |
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
