点击放大查看

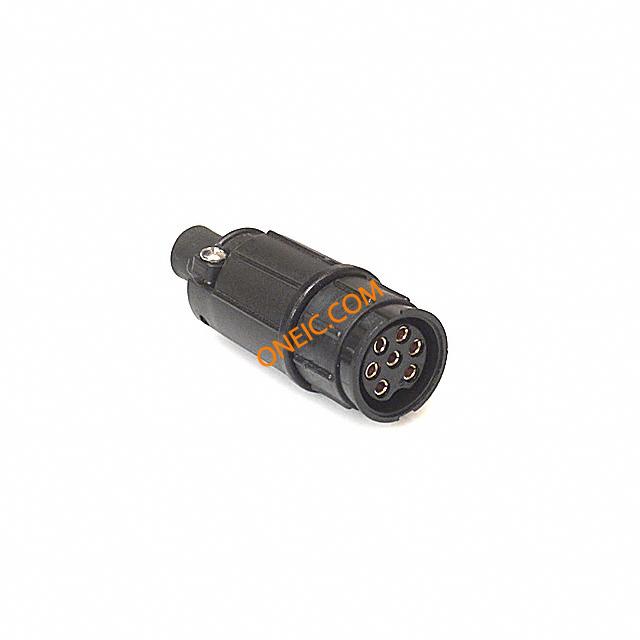

15182-7SG-326
| 制造商 | |
| 描述 | Standard Circular Connector 7P SCKT CBL TO CBL O.D.=.26-.30 Conn Field Installable SKT 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN RCPT 7POS CABLE SKT MAXI-CON CABLE PLUG, 7way socket MAXI-CONCABLEPLUG,7waysocket MAXI-CONCABLE-CABLE#12SOLDER Switchcraft MAXI-CON-X 系列 7路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 其他名称 | SC1197 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 23A |
机械参数
| 外形尺寸(长x宽) | 26.9mm | 直径 | 26.9 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 26.9mm | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 触头类型 | 7Signal | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 63.5 |
| 端接排数 | 焊接 | 第一触头极性 | SKT |
| 触点数 | 7 | 位数 | 7 |
| 外壳材料及表面处理 | Nylon | ||
产品信息
| 类型 | Field Installable | 连接器性别 | Female |
| 系列 | MAXI-CON-X | 产品特性 | Cable Clamp |
| 产品子类型 | Connectors | ||
环境参数
| 密封等级 | IP67 | 防护等级 | Weathertight |
| 工作温度 | -40°C ~ 115°C | ||
