点击放大查看

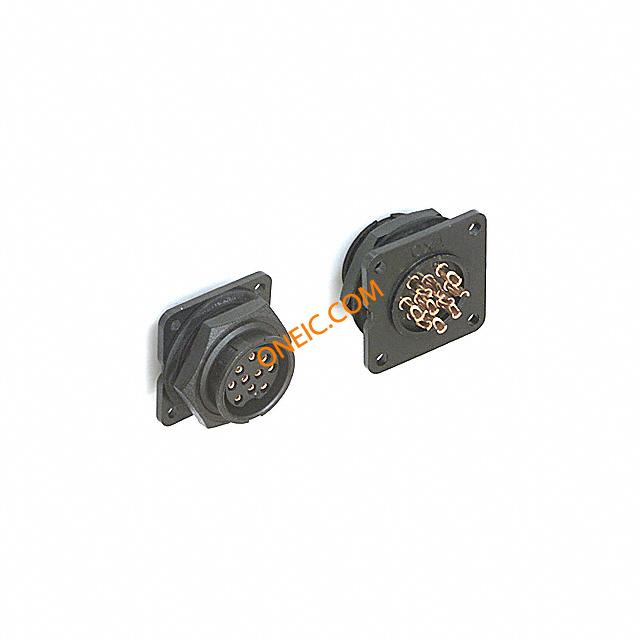

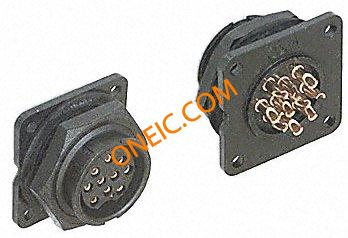

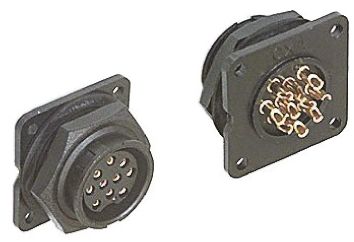

14382-10SG-300

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 10P SOCKET PANEL MNT W/ HEX NUT & GSKT Standard Circular Connectors 10P SOCKET PANEL MNT W/ HEX NUT & GSKT CONN RCPT 10POS PNL MNT SKT 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts MAXI-CON-X Series Conn Field Installable SKT 10 POS Solder ST Panel Mount 10 Terminal 1 Port CIRCULAR CONNECTOR RCPT SIZE 16, 10POS, PANEL Conn;Cir;CPC;Plastic;CableSocket;10Cnts;Maxi-Con-X;Solder;#16Sockets Switchcraft MAXI-CON-X 系列 10路面板安装直向连接器插座 , 母触点
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

交货时间	44 Days	商标名	Maxi-Con-X
子类别	Connector Circular	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366990

电气参数

额定电压

600V

最大额定电流

13A

机械参数

重量	0.014	包装方式	Bulk
方向	Keyed	外壳样式	Receptacle
端接方式	Solder Cup	安装类型	Panel Mount, Bulkhead - Front Side Nut, Flange
连接器类型	Receptacle, Female Sockets	接触镀层	Gold
紧固类型	Bayonet Lock	本体材料	:Nylon (Polyamide)
触头材料	Brass	壳体材料	Nylon
第一触头极性	Female	触点数	10
位数	10	外壳材料及表面处理	Nylon
第一连接器安装类型	:Panel

产品信息

连接器性别	Female	系列	MAXI-CON-X
产品子类型	Connectors

环境参数

密封等级	IP67	防护等级	Weathertight
工作温度	-40°C ~ 115°C

文档与媒体

PDF 文档

conxall_catalog.pdf

PDF 文档

Maxi(Mini)-Con-X Drawing

PDF 文档

conxall_catalog.pdf
