点击放大查看

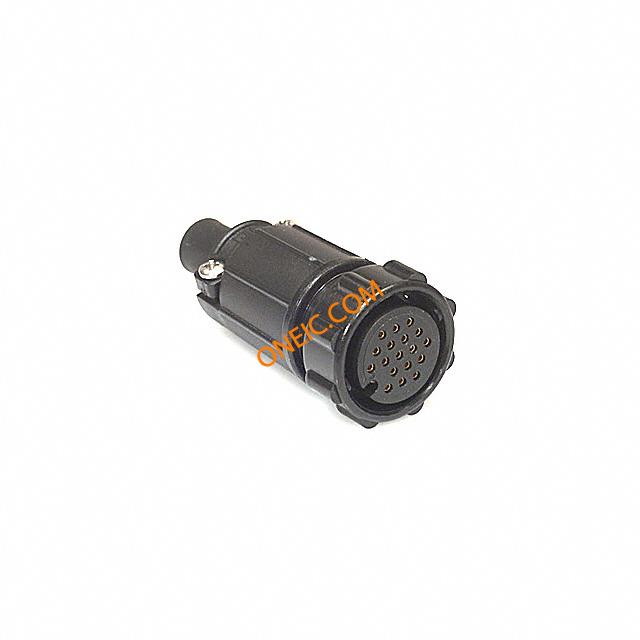

13282-18SG-326
| 制造商 | |
| 描述 | Standard Circular Connector 18P SOCKET CABLE END O.D.=.26-.30 Conn Field Installable SKT 18 POS Solder ST Cable Mount 18 Terminal 1 Port Standard Circular Connectors 18P SOCKET CABLE END O.D.=.26-.30 CONN PLUG 18POS CABLE SKT MAXI-CONCABLE#20SOLDER |
| 分类 |
商业参数
| 商标名 | Maxi-Con-X | 其他名称 | SC1187 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | ||
机械参数
| 直径 | 26.9 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | 18Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 触头材料 | Brass |
| 总长度 | 63.5 | 第一触头极性 | Socket (Female) |
| 触点数 | 18 | 位数 | 18 |
| 外壳材料及表面处理 | Nylon | ||
产品信息
| 类型 | Field Installable | 系列 | Maxi-Con-X |
| 产品特性 | Cable Clamp | 产品子类型 | Connectors |
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
文档与媒体
