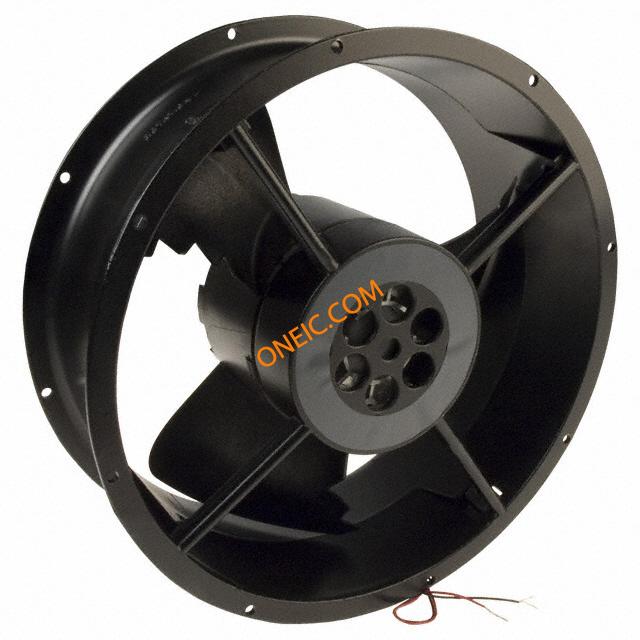

点击放大查看
19031573A
| 制造商 | |
| 描述 | FAN 24V 254MM X 88.9MM CD24B3 |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 功率（瓦） | 29.0W | 电压范围 | 12 ~ 28VDC |
| 额定电压 | 24VDC | 最大额定电流 | 1.2A |
机械参数
| RPM | 1650 RPM | 重量 | 4.4 lbs (2kg) |
| 风量 | 550.0 CFM (15.58m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.300 in H2O (74.7 Pa) | 刀片材料 | Plastic |
| 框架材料 | Aluminum | 尺寸/外形 | Round - 254mm Dia x 88.9mm W |
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
文档与媒体
