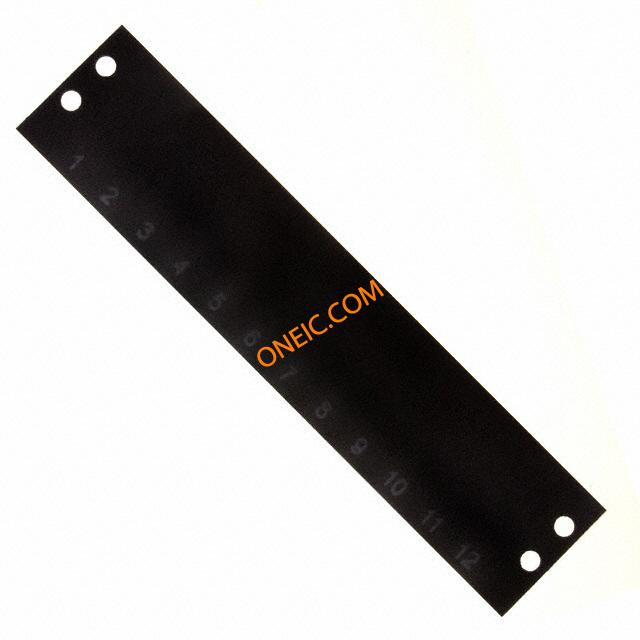

MS-12-141
| 制造商 | Cinch Connectors |
| 描述 | Terminal Block Tools & Accessories MARKING STRIP 12 TRM BARRIER BLK MARKER STRIP 12POS connector accessory;marker strip for 12 terminal barrier term block;series 141 Connector Accessories Marker Strip For 12 POS Barrier Blocks Nema Grade XPC TERMINAL BLOCK MARKER, 1 TO 12, 11.13MM MarkerStrip;TermStrip;12;BarrierConn;TermBlock;Series141 |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 产品类别 | Terminal Block Tools & Accessories |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Compliant | 标准 | ULRecognized,CSACertified |
| 海关税号 | 85366910 | ||
机械参数
| 颜色 | Black | 间距 | 0.438" (11.12mm) |
| 重量 | 0.005 | 材料（通用） | EnemaGradeXPC |
| 螺钉尺寸 | 6-32 | 方向 | HorizontalPrint |
| 排数 | Double | 螺丝材料 | Steel |
| 主要材料 | MarkerStrip | 连接器颜色 | White |
| 绝缘材料 - 材质 | MoldedMonoblock,GeneralPurposePhenolic | ||
产品信息
| 类型 | Label, Screw In | 图例 | Blank |
| 系列 | :141 | 制造商全称 | Series141 |
| 图例（文字） | Nos.1-12 | 附件类型 | :Terminal Block Marker |
| 有铅工艺兼容 | :No | 适用产品/相关产品 | 141 Series |
环境参数
| 测试温度 | :No | 工作温度 | -55to+300°F |
