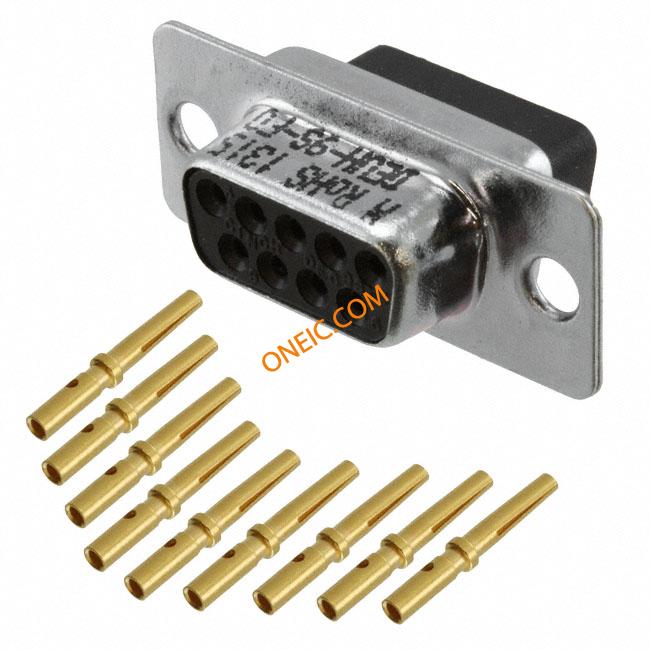

DEUH-9S
| 制造商 | |
| 描述 | D-Sub Standard Connectors 9C SCKT W CONTACTS CONN DB9 SOCKET CRIMP W/CONTACT CONNECTOR,D-SUBMINIATURE,STRRECEPTACLEW/MACHINEDCRIMPCONTACTS,9SOCKETCONT |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 750 |
| 工厂包装数量 | 750 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 外壳尺寸 | E | 端接方式 | Crimp |
| 重量（g） | 24.70591 | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Zinc |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide (PA), Nylon, Glass Filled | 端接样式 | Crimp |
| 触点数 | 9 | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Clear Chromate Zinc Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Female | ||
环境参数
| 工作温度 | - 65 C to + 125 C | ||
文档与媒体
相关型号
DEUH-9P-FO
Cinch
D-Sub Standard Connectors 9C PLUG NO CONTACTS D*U SERIES CONN DB9 PLUG CRIMP W/O CONT Conn Housing PL 9 POS Crimp ST Cable Mount CONNECTOR,D-SUB,PLUGHOUSINGLESSCONTACTS,FOR9CRIMPPINCONTACTS
DEUH-9P
Cinch
D-Sub Standard Connectors 9C PLUG W CONTACTS CONN DB9 PLUG CRIMP W/CONTACT CONNECTOR,D-SUBMINIATURE,STRPLUGWITHMACHINEDCRIMPCONTACTS,9PINCONTACT

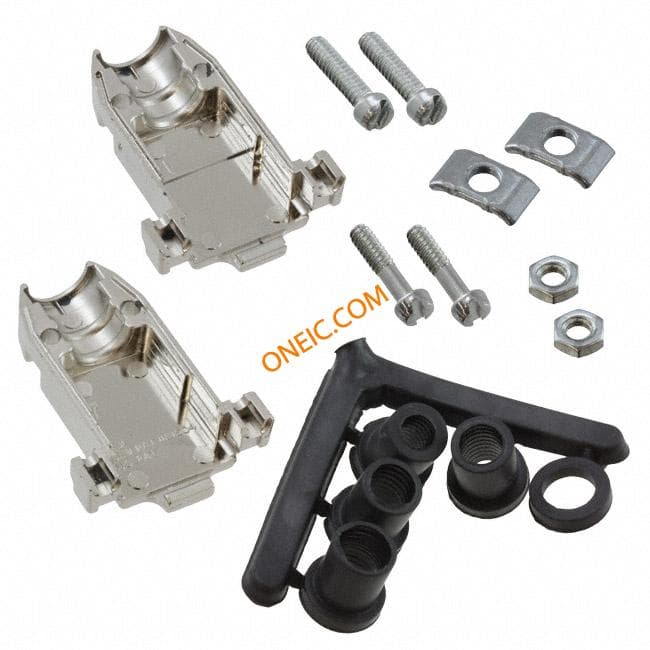

DCH-E-003
