7-142
| 制造商 | Cinch Connectors |
| 描述 | Barrier Terminal Blocks 7 TERMINALS .563 BARRIER BLOCK 7CIRC .563" Conn Barrier Strip 14 POS 14.3mm Screw ST Panel Mount 30A TERMINAL BLOCK, BARRIER, 7POS, 10AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-1 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 30A |
机械参数
| 颜色 | Black | 间距 | 0.563" (14.30mm) |
| 宽度 | 1.312 in | 高度 | 0.625 in |
| 长度 | 4.906 in | 重量 | 0.068 |
| 包装方式 | Bulk | 导线线规 | 10 AWG |
| 安装类型 | Chassis, Panel | 连接器类型 | :Barrier Terminal Block |
| 接触镀层 | Nickel | 安装样式 | Panel |
| 排数 | 2 | 顶部端接 | Screws |
| 触头材料 | Brass | 壳体材料 | Phenolic |
| 刀片材料 | Steel | 端接样式 | Screw |
| 底部端接 | Closed | 触点数 | 7 |
| 接线端子类型 | Barrier Block | 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) |
| 进线口数 | 14 | 线规或范围 - AWG | 10 |
| 线规或范围 - mm² | 10 | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Wire-to-Board | 系列 | :142 |
| 产品特性 | Flange | 隔离类型 | 2 Wall (Dual) |
| 电路数 | 7 | ||
环境参数
| 工作温度 | -55°F ~ 300°F | ||
文档与媒体
相关型号

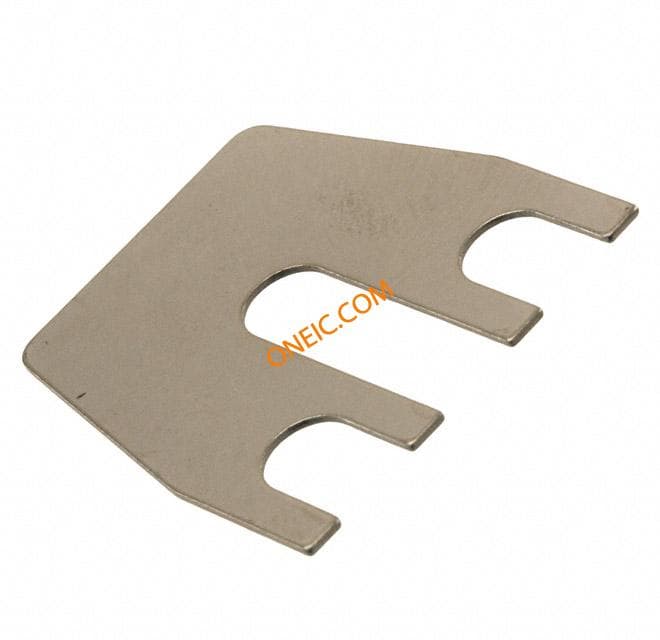

142J-2
Cinch
Terminal Block Tools & Accessories TYPE E JUMPER-142 TERMINAL BLOCK JUMPER TYPE E JUMPERS;USE WITH 142/542 Conn Jumper 2 POS ST Jumper;TermBlock;Barrier;Jumperforadjacentterminals;Series142
¥2.1964
详情

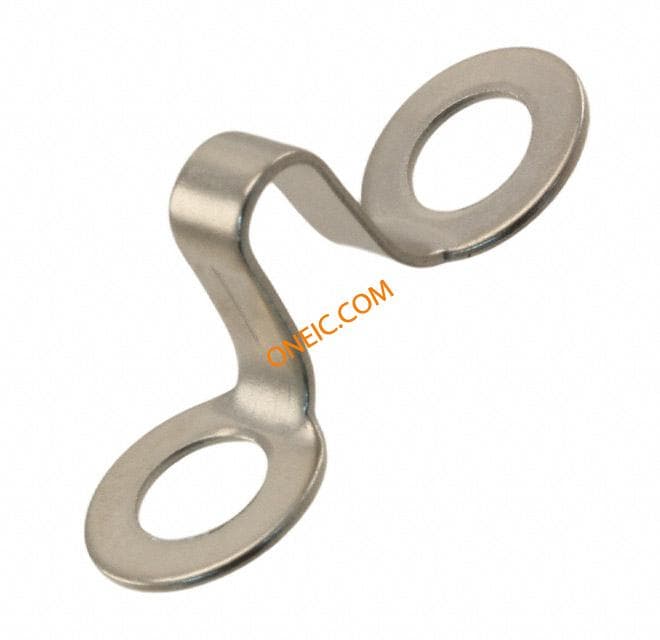

95B
Cinch
Terminal Block Tools & Accessories TYPE F JUMPER-142 Conn Jumper 2 POS ST TERMINAL BLOCK JUMPER TYPE F JUMPER, BRASS Jumper;TermBlock;Barrier;Jumperforadjacentterminals;Series142
¥4.7736
详情

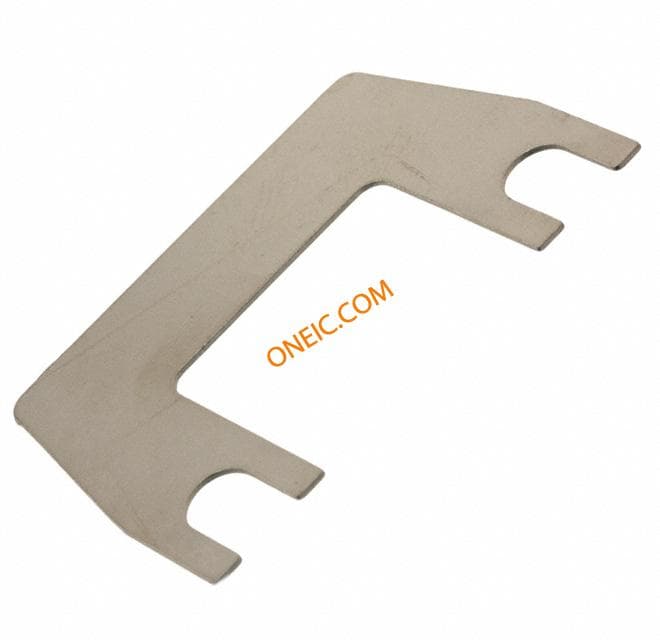

142J-1
