点击放大查看

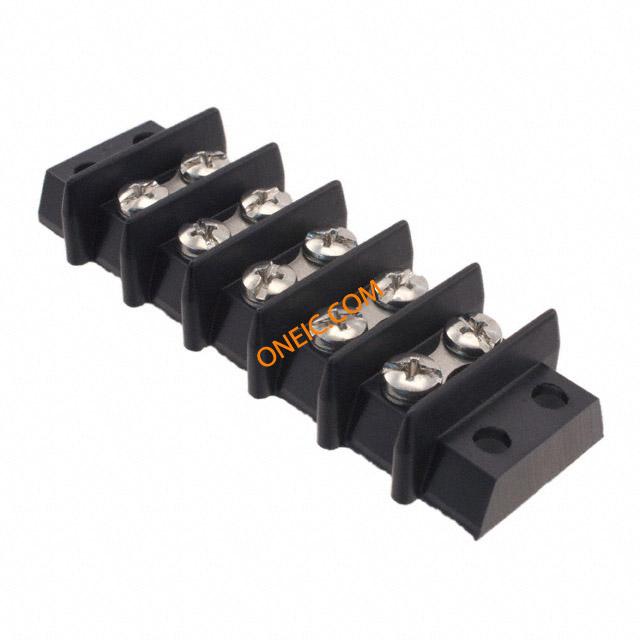

5-142
| 制造商 | Cinch Connectors |
| 描述 | Barrier Terminal Blocks 5 TERMINALS .563 BARRIER BLOCK 5CIRC .563" Conn Barrier Strip 10 POS 14.3mm Screw ST Panel Mount 30A TERMINAL BLOCK, BARRIER, 5POS, 10AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-1 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 30A |
机械参数
| 颜色 | Black | 间距 | 0.563" (14.30mm) |
| 长度 | 85.73 mm | 重量 | 0.05 |
| 包装方式 | Bulk | 导线线规 | 10 AWG |
| 安装类型 | Chassis, Panel | 连接器类型 | :Barrier Terminal Block |
| 接触镀层 | Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 顶部端接 | Screws |
| 触头材料 | :Brass | 刀片材料 | Steel |
| 端接样式 | Screw | 底部端接 | Closed |
| 触点数 | 5 | 接线端子类型 | Barrier Block |
| 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) | 进线口数 | 10 |
| 线规或范围 - mm² | 10 | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Wire-to-Board | 系列 | :142 |
| 产品特性 | Flange | 隔离类型 | 2 Wall (Dual) |
| 电路数 | 5 | ||
环境参数
| 工作温度 | -55°F ~ 300°F | ||
文档与媒体
相关型号

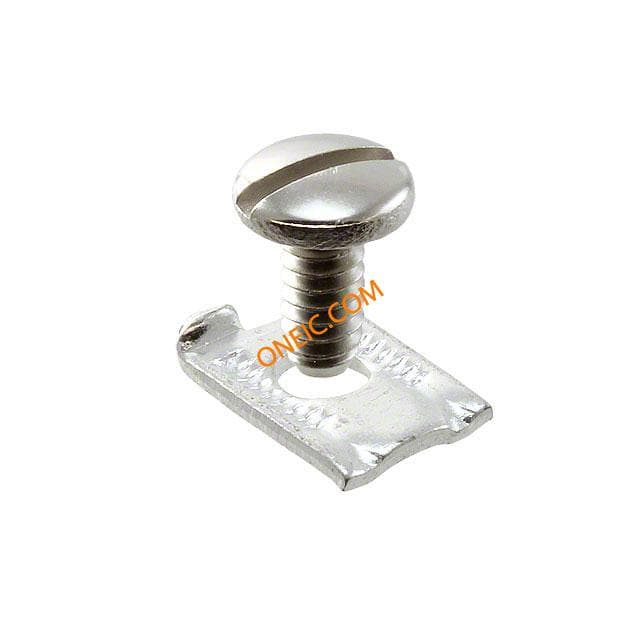

QC-1
Cinch
Terminal Block Tools & Accessories QUICK CLAMP TERM 1P 22-12 AWG TERMINAL QUICK CLAMP 141SER
¥5.7120
详情

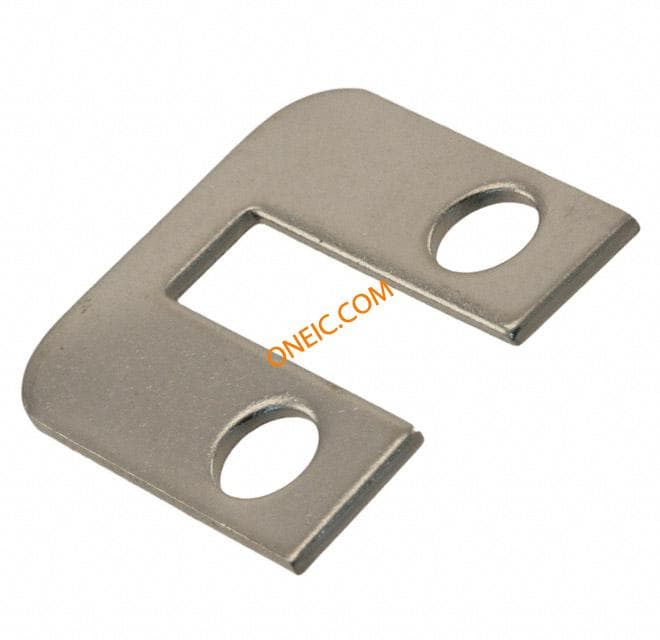

141J-1
Cinch
Terminal Block Tools & Accessories TYPE B JUMPER-141 TERMINAL BLOCK JUMPER TYPE B hardware;barrier terminal block;jumper for adjacent terminals on series-141 Conn Jumper 2 POS ST TERMINAL BLOCK JUMPER, 2POS, 11.13MM Jumper;TermBlock;Barrier;Jumperforadjacentterminals;forSeries141
¥3.8012
详情

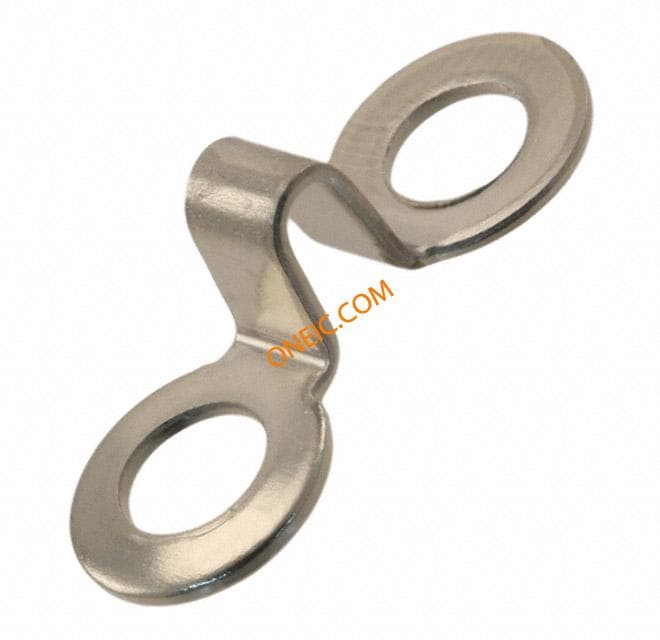

141J
