点击放大查看

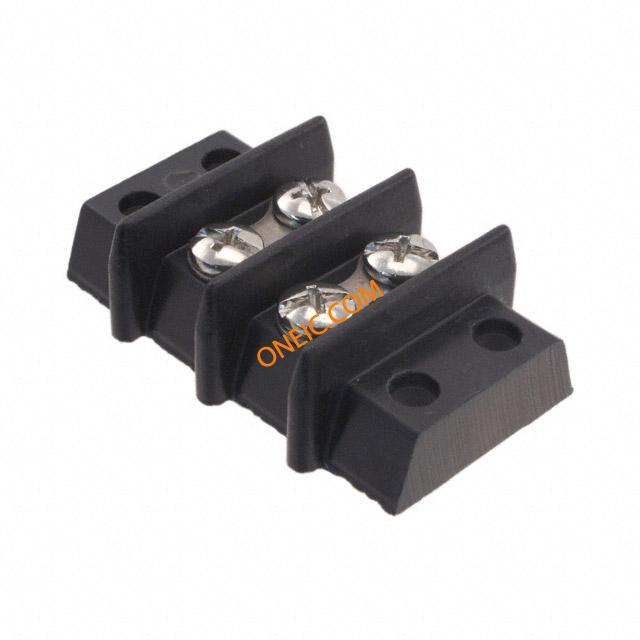

2-142
| 制造商 | Cinch Connectors |
| 描述 | Barrier Terminal Blocks 2 TERMINALS .563 CONN BARRIER BLOCK .563" 2 CIRC connector;barrier terminal block;double row;2 terminals;rated 30 amp;250 volts Conn Barrier Strip 4 POS 14.3mm Screw ST Panel Mount 30A Conn;TermStrip;Barrier;2;.563Density;DblRow;10AWG;30A;250V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL94 V-1 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 30A |
机械参数
| 颜色 | Black | 间距 | 0.563" (14.30mm) |
| 宽度 | 1.312 in | 高度 | 0.625 in |
| 长度 | 2.094 in | 包装方式 | Bulk |
| 导线线规 | 10 AWG | 重量（g） | 26.00000 |
| 安装类型 | Chassis, Panel | 接触镀层 | Nickel |
| 安装样式 | Panel | 排数 | 2 |
| 顶部端接 | Screws | 触头材料 | Brass |
| 壳体材料 | Phenolic | 刀片材料 | Steel |
| 端接样式 | Screw | 底部端接 | Closed |
| 触点数 | 2 | 接线端子类型 | Barrier Block |
| 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) | 进线口数 | 4 |
| 线规或范围 - AWG | 10 | 线规或范围 - mm² | 10 |
产品信息
| 类型 | Wire-to-Board | 产品特性 | Flange |
| 隔离类型 | 2 Wall (Dual) | 电路数 | 2 |
环境参数
| 工作温度 | -55°F ~ 300°F | ||
文档与媒体
PDF 文档
