2-141
| 制造商 | Cinch Connectors |
| 描述 | Barrier Terminal Blocks 2 TERMINALS .438 CONN BARRIER BLOCK .438" 2 CIRC connector;barrier terminal block;double row;2 terminals;rated 20 amp;250 volts Conn Barrier Strip 4 POS 11.13mm Screw ST Panel Mount 20A TERMINAL BLOCK, BARRIER, 2POS, 14AWG Conn;TermStrip;Barrier;2;.438Density;DblRow;14AWG;20A;250V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-1 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 20A |
机械参数
| 颜色 | Black | 间距 | 0.438" (11.12mm) |
| 宽度 | 1.125 in | 高度 | 0.5 in |
| 长度 | 1.312 in | 重量 | 0.014 |
| 包装方式 | Bulk | 导线线规 | 14 AWG |
| 安装类型 | Chassis, Panel | 连接器类型 | :Barrier Terminal Block |
| 接触镀层 | Nickel | 安装样式 | Panel |
| 排数 | 2 | 顶部端接 | Screws |
| 触头材料 | Brass | 壳体材料 | Phenolic |
| 刀片材料 | Steel | 端接样式 | Screw |
| 底部端接 | Closed | 触点数 | 2 |
| 接线端子类型 | Barrier Block | 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) |
| 进线口数 | 4 | 线规或范围 - AWG | 14 |
| 线规或范围 - mm² | 14 | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Wire-to-Board | 系列 | :141 |
| 产品特性 | Flange | 隔离类型 | 2 Wall (Dual) |
| 电路数 | 2 | ||
环境参数
| 工作温度 | -55°F ~ 300°F | ||
文档与媒体
相关型号

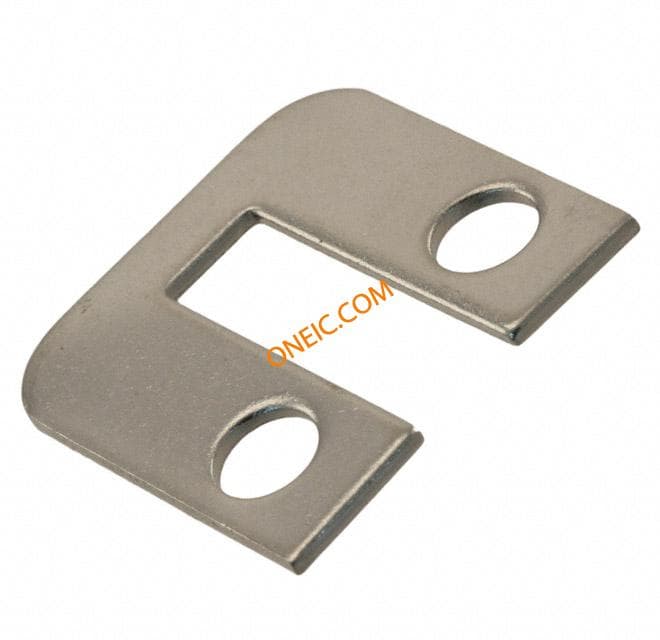

141J-1
Cinch
Terminal Block Tools & Accessories TYPE B JUMPER-141 TERMINAL BLOCK JUMPER TYPE B hardware;barrier terminal block;jumper for adjacent terminals on series-141 Conn Jumper 2 POS ST TERMINAL BLOCK JUMPER, 2POS, 11.13MM Jumper;TermBlock;Barrier;Jumperforadjacentterminals;forSeries141
¥3.8012
详情

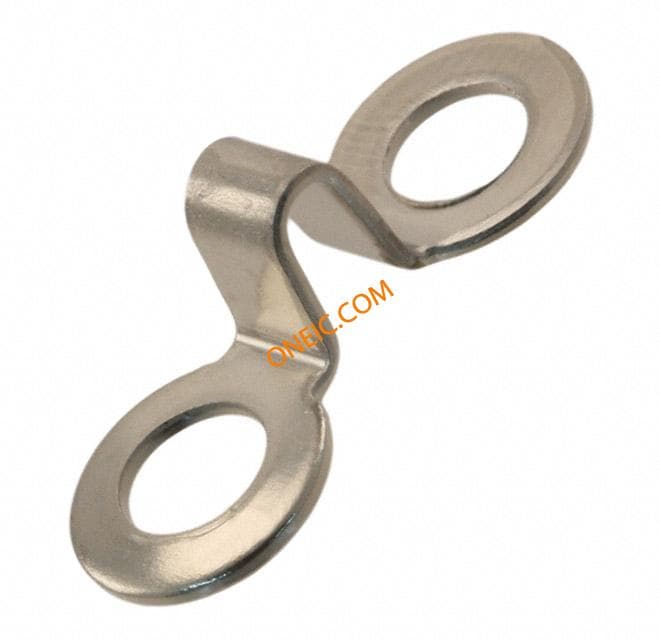

141J
