点击放大查看

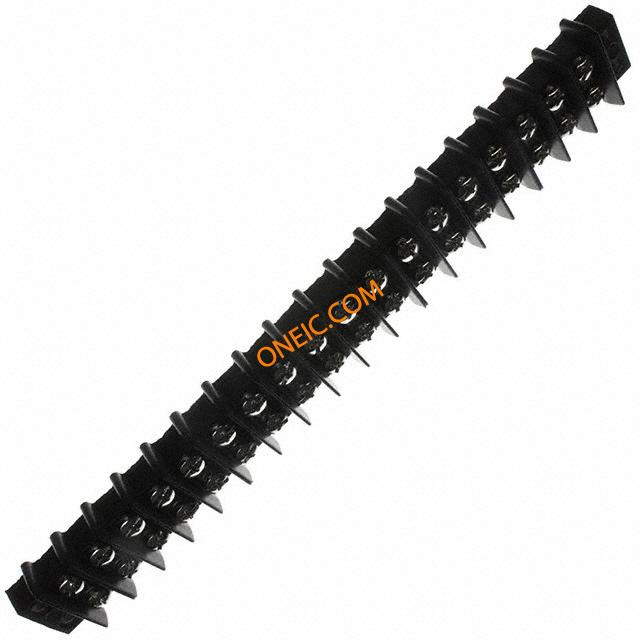

18-141
| 制造商 | Cinch Connectors |
| 描述 | Barrier Terminal Blocks 18 TERMINALS .438 141 Series CONN BARRIER BLOCK .438" 18 CIRC Conn Barrier Strip 36 POS 11.13mm Screw ST Panel Mount 20A TERMINAL BLOCK, BARRIER, 18POS, 14AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | No | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-1 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 20 A |
机械参数
| 颜色 | Black | 间距 | 0.438" (11.12mm) |
| 重量 | 0.091 | 包装方式 | Bulk |
| 导线线规 | 14 AWG | 安装类型 | Chassis, Panel |
| 连接器类型 | :Barrier Terminal Block | 接触镀层 | Nickel |
| 排数 | 2 | 顶部端接 | Screws |
| 触头材料 | :Brass | 刀片材料 | Steel |
| 底部端接 | Closed | 触点数 | 18 |
| 接线端子类型 | Barrier Block | 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) |
| 进线口数 | 36 | 线规或范围 - mm² | 14 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Wire to Board | 系列 | :141 |
| 产品特性 | Flange | 隔离类型 | 2 Wall (Dual) |
| 电路数 | 18 | ||
环境参数
| 工作温度 | -55°F ~ 300°F | ||
