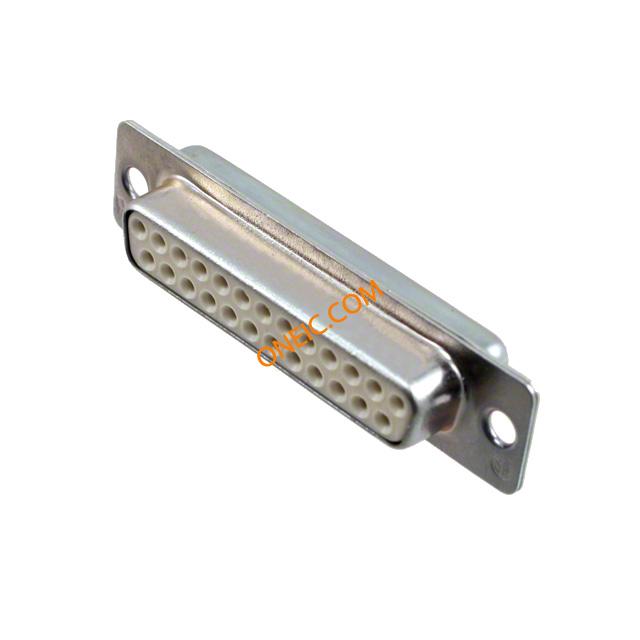

点击放大查看
DB-H25S
| 制造商 | |
| 描述 | CONN DB25 SOCKET SOLDER CUP |
商业参数
| 标准包装数量 | 750 | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | White | 包装方式 | Bulk |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polyester, Glass Filled | 位数 | 25 |
| 外壳材料及表面处理 | Steel, Zinc Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
环境参数
| 工作温度 | -65°C ~ 125°C | ||
